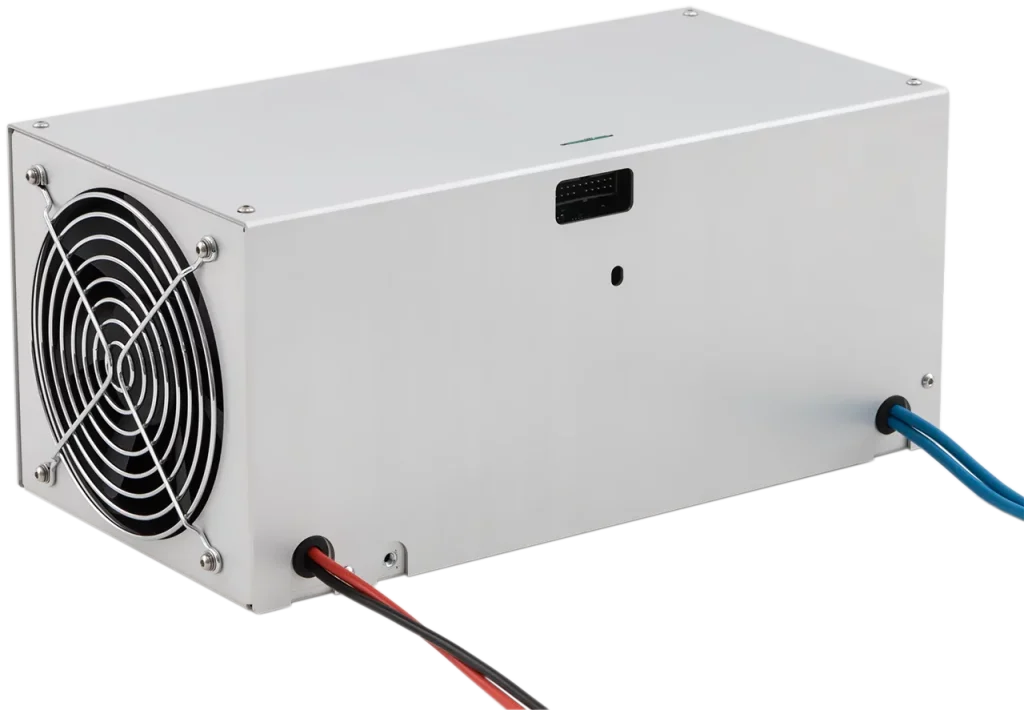

PCA-40 Capacitor Charging Power Supply
Product details
PCA-40 is a medical capacitor charging module of the high power rating. Basic parameters are as follows:
- Dual input – 230 VAC
- Partial and complete discharge modifications Output power up to 4,000 W
- Output voltage up to 4,000 V
- Cooling – forced air (embedded fan) IEC 60601-1 ed.3 compliance
- Dual 110 VAC and 230 VAC input Full medical compliance
- Parallel operation Low cost
Downloads: Downloads
-
pca-40-certificates.pdf Download PCA-40 family Certificates of Conformity to IEC 60601-1, IEC 60601‑1‑2 and CE declaration of conformity (p/n - PCA‑40‑800V‑PD, PCA‑40‑1000V‑PD, PCA‑40‑1300V‑СD) (2 MB) Updated March 10, 2026
| File | Size | Updated |
|---|---|---|
|
pca-40-manual-en.pdf
Download manual (1 MB)
Download manual
|
1 MB | March 10, 2026 |
|
pca-40-certificates.pdf
Download PCA-40 family Certificates of Conformity to IEC 60601-1, IEC 60601‑1‑2 and CE declaration of conformity (p/n - PCA‑40‑800V‑PD, PCA‑40‑1000V‑PD, PCA‑40‑1300V‑СD) (2 MB)
Download PCA-40 family Certificates of Conformity to IEC 60601-1, IEC 60601‑1‑2 and CE declaration of conformity (p/n - PCA‑40‑800V‑PD, PCA‑40‑1000V‑PD, PCA‑40‑1300V‑СD)
|
2 MB | March 10, 2026 |
|
pca-40-step.zip
Download STEP model for PCA-40 (54 MB)
Download STEP model for PCA-40
|
54 MB | March 10, 2026 |
Product Description
PCA-40 capacitor charging power supply is developed for the use in pumping systems of flashlamp-pumped solid-state laser devices.
The maximal output power of the power supply is 4000 W, so it is the best for use in laser systems of high power like Long Pulse Nd:YAG, Long Pulse Alexandrite (dual flashlamps), 60W CTH:YAG (dual-head). In all other respects, PCA-40 is a part of PCA series of CCPS.
Like PCA-10 and PCA-20, PCA-40 is a medical capacitor charging power suitable for use in medical laser equipment. All the device parameters meet the latest versions of medical standards requirements: IEC 60601-1 for electrical safety, IEC 61000-3-2 for active power factor correction (PFC) and EN 55011 / CISPR 11 Class A safety requirements for EMI and leakage current.
As such, the power supply can be used in different kinds of medical devices without any additional filtration or additional means of protection.
Technical Specifications
| INPUT | |
|---|---|
| Voltage | 180 ‐ 264 VAC, 50/60 Hz |
| Current | < 20 A |
| OUTPUT | |
| Max Output Power | 4,000 Watts |
| Max Output Voltage | 300/500/700/1,000/1,500V standard modifications; up to 4,000V on request |
| Modifications | Partial discharge modification, Complete discharge modification |
| Voltage Adjustment Accuracy | <0.5% |
| Efficiency | more than 85% |
| SAFETY | |
| Power Factor Correction (PFC) Coefficient | >0.98 (active) |
| Leakage Current | <300µA |
| Main Safety Standard | IEC 60601-1 |
| Isolation | 4000VAC (2x MOPP) |
| EMC | EN 55011 (Class A) |
| Protections |
|
| ENVIRONMENT | |
| Cooling | Forced air (with built‐in fan) |
| Operational Temperature | +10 °C to +40 °C |
| Storage Temperature | ‐20 °C to +60 °C |
| Humidity | 90%, non-condensing |
| PHYSICAL | |
| Exterior Dimensions (LxWxH) | 290x150x131 mm |
| Weight | 3.8kG |
Options
Many parameters of the power supply can be taylored to your needs. Some of them are listed below:
- Output voltage incl. non-standard
- Optimization for complete discharge, partial discharge or other custom regime
- Reduced or burst-mode output power
- Interfaces (calibration, logic)
- Type and location of connectors
- Cables
- Enclosure case
How To Order
Partial discharge modifications:
| Model * | Description |
|---|---|
| PCA-40-500V-PD | Maximal output voltage 500V Partial discharge modification |
| PCA-40-700V-PD | Maximal output voltage 700V Partial discharge modification |
| PCA-40-1000V-PD | Maximal output voltage 1000V Partial discharge modification |
| PCA-40-1500V-PD | Maximal output voltage 1500V Partial discharge modification |
(*) Other output voltages are available on request
Complete discharge modifications:
| Model * | Description |
|---|---|
| PCA-40-700V-CD | Maximal output voltage 700V Complete discharge modification |
| PCA-40-1000V-CD | Maximal output voltage 1000V Complete discharge modification |
| PCA-40-1500V-CD | Maximal output voltage 1500V Complete discharge modification |
(*) Other output voltages are available on request
Example:
| PCA-40-1000V-PD | Maximal output voltage 1000V Partial discharge modification |
