Bench-top Pockels Cell Drivers

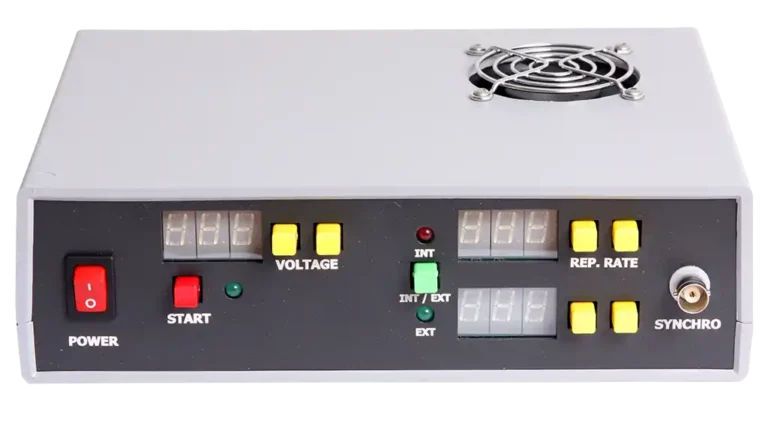

QBD-BT-series is a series of bench-top (table-top) Pockels Cell Drivers, designed for the laboratory use and based on OEM PC drivers of the QBD-series. Key parameters and features:

• Push-up or pull-down modifications
• Up to 6 kV output voltage
• Up to 100 kHz and higher repetition rate
• < 20 ns rise- and fall-times

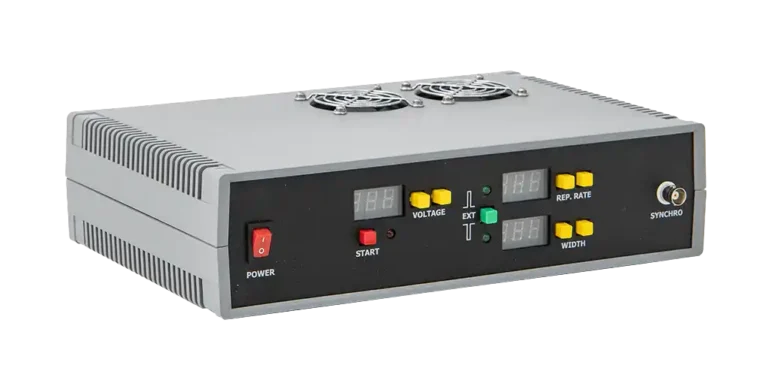

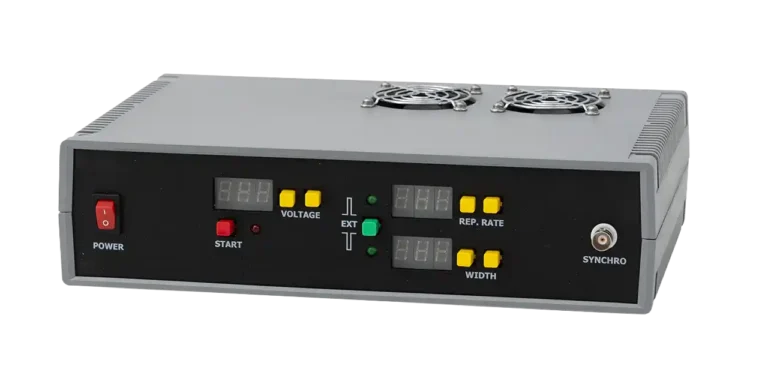

QBU-BT-10kV is a bench-top (table-top) Pockels cell driver designed for the laboratory usage and based on OEM Pockels cell driver QBU-10kV. Key parameters/features are:

• Extremely flexible topology;
• Push-up scheme, pull-down scheme, mixed or user-defined in one module (duplicates at its HV output the external driving TTL signal);
• Up to 10 kV output voltage;
• Up to 5 kHz repetition rate at maximal voltage, up to 50 kHz at lower voltages;
• < 20 nsec rise/fall time;
• Perfectly suitable for the laboratory purposes.

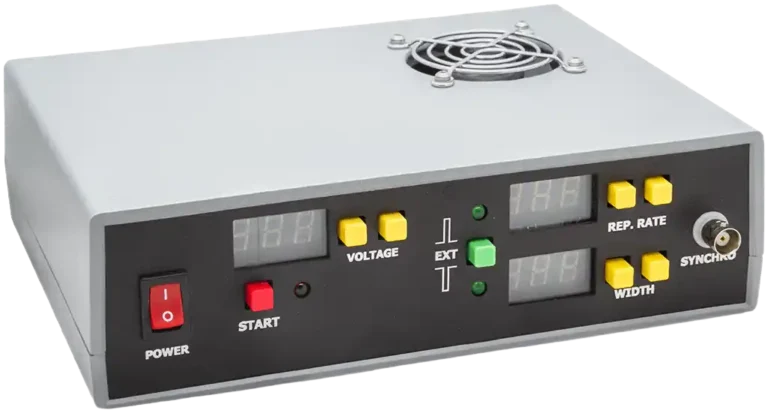

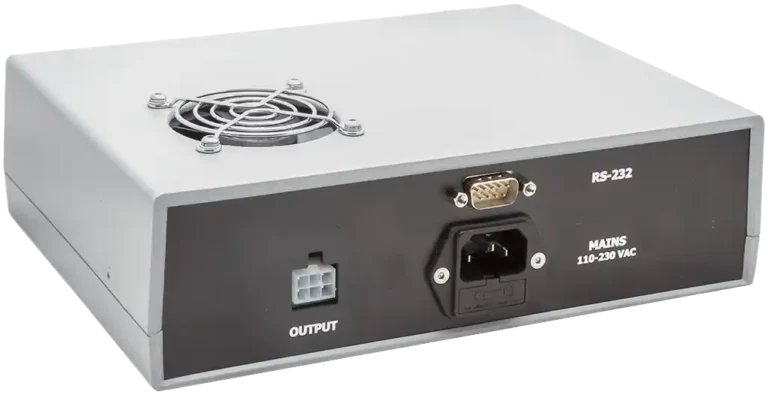

QBU-BT-series is a series of bench-top (table-top) Pockels cell drivers designed for the laboratory use and based on OEM Pockels Cell Drivers of QBU-series. Key parameters/features are:

• Extremely flexible topology;
• Push-up scheme, pull-down scheme, mixed or user-defined in one module (duplicates at its HV output the external driving TTL signal);
• Up to 6 kV output voltage;
• Up to 100 kHz and higher repetition rate;
• < 20 nsec rise/fall time;
• Perfectly suitable for the laboratory purposes.

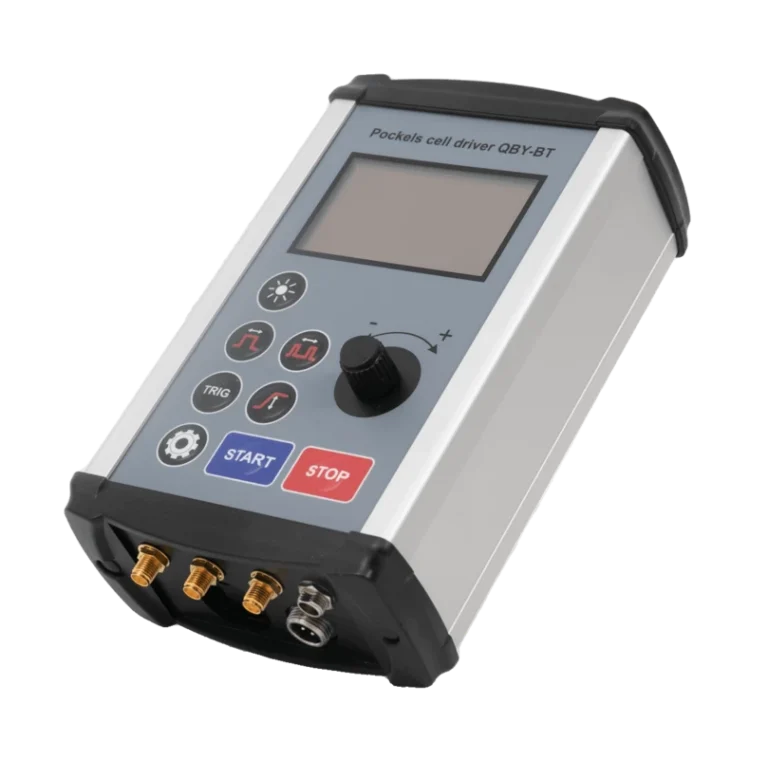

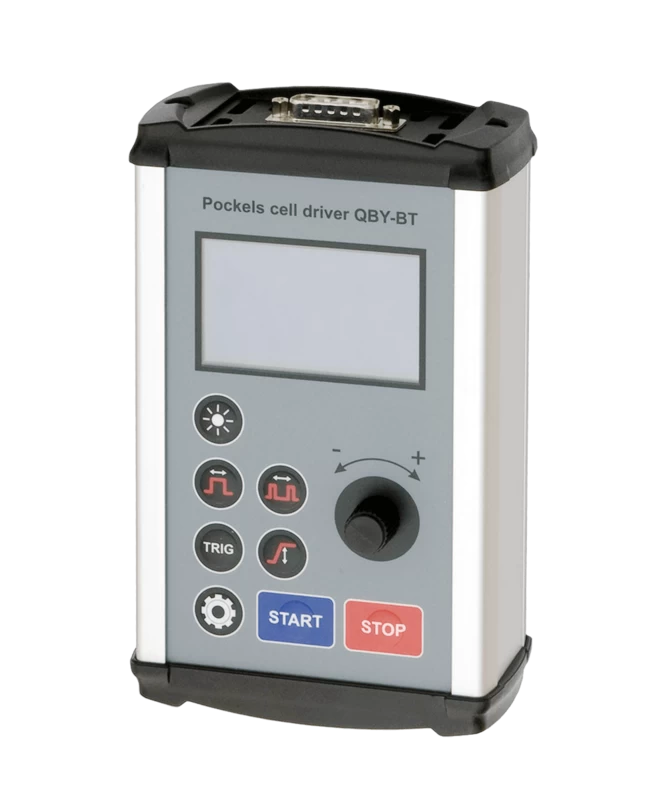

Applications

• Pulse slicing, pulse picking
• Control of laser regenerative amplifiers

Features

• Input 24 V DC
• Output voltage up to 4 kV (bipolar)
• Adjustable pulse width, 10-1000 ns (other on request)
• 3-4 ns rise / fall time
• Max. repetition rate up to 5 kHz @4kV
• Forced air cooling with fan
• Compact dimensions
