QBY-series Pockels Cell Drivers

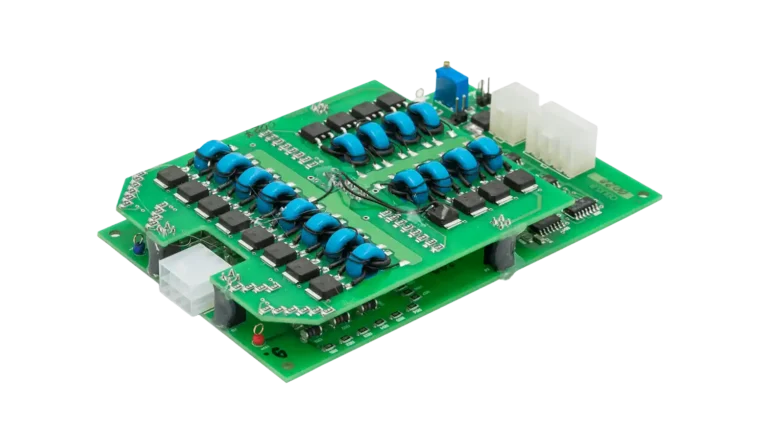

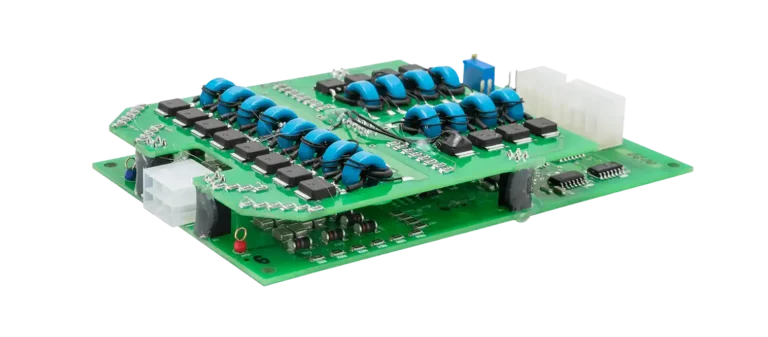

QBU-series Pockels cell drivers have higher performance and wider functionality than QBD-series drivers and may be used for advanced beam control. Main parameters/features are as follows:

• Extremely flexible topology
• Duplicates at its High-Voltage Output the external driving TTL signal
• HV push-up and pull-down configurations
• Up to 6 kV output voltage
• Up to 100 kHz Pulse Repetition Rate
• <15 nsec (~10 nsec typ.) rise- and fall times
• Compact OEM design

Applications

• Pulse slicing, pulse picking
• Control of laser regenerative amplifiers

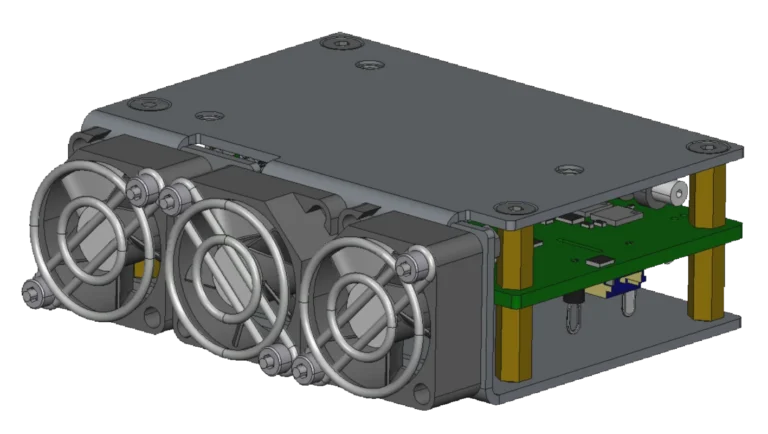

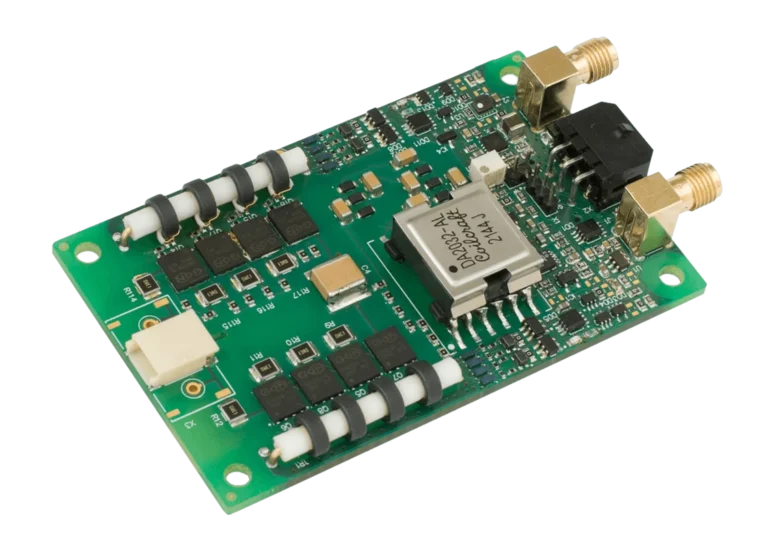

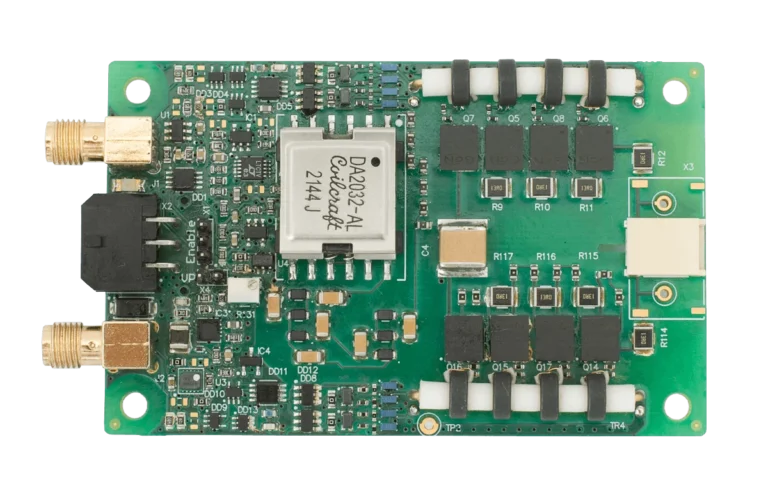

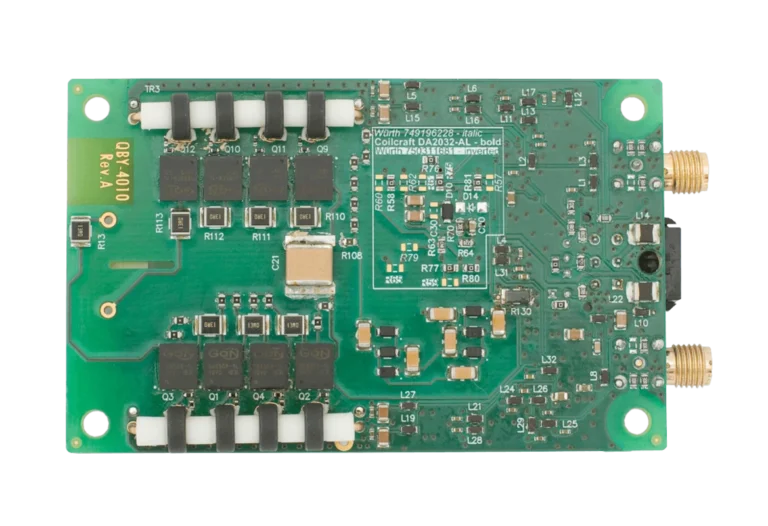

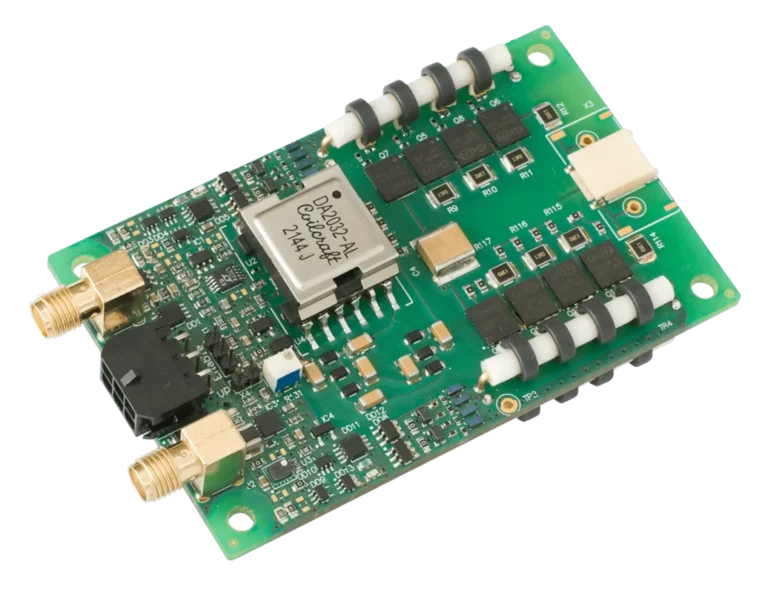

Features

• Input 24 V DC
• Output voltage up to 4 kV (bipolar)
• Adjustable pulse width, 10-1000 ns (other on request)
• 3-4 ns rise / fall time
• Compact dimensions

Applications

• Q-switching, pulse slicing
• Battery powered equipment, some LIDAR systems

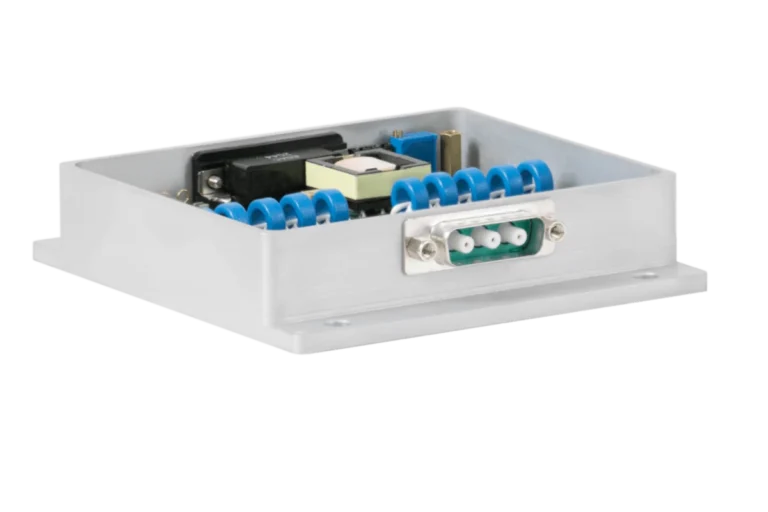

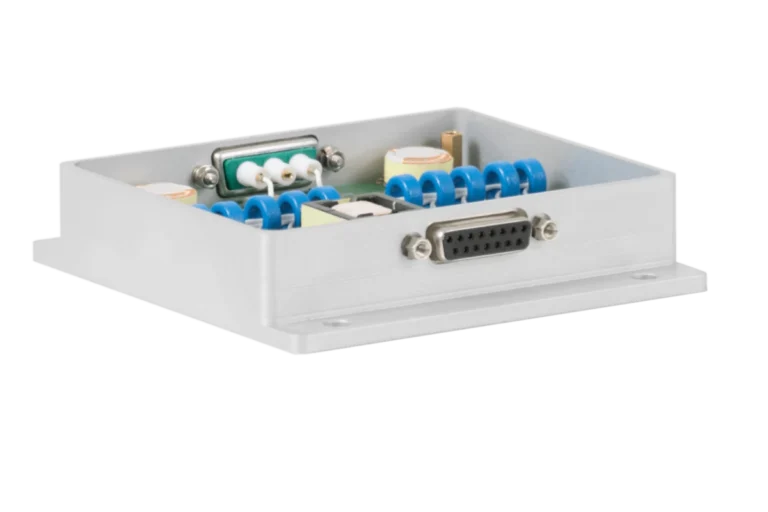

Features

• Input 24 V DC
• Output voltage up to 5 kV
• Power consumption < 10 W for 5 pF load in 50 kHz and 4 kV regime
• < 40 ns both rise/fall time (< 20 ns on request)
• Performance 50 kHz @ 4 kV
• Compact dimensions – 112x108x25 mm
