Simmer Modules

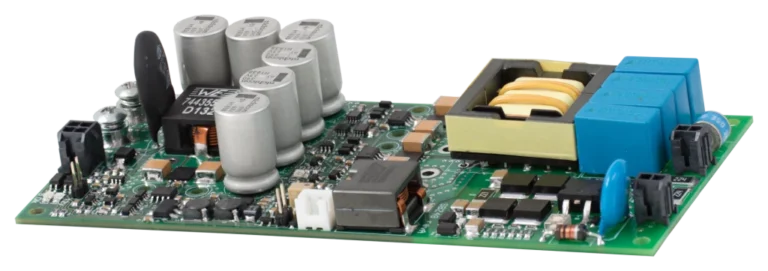

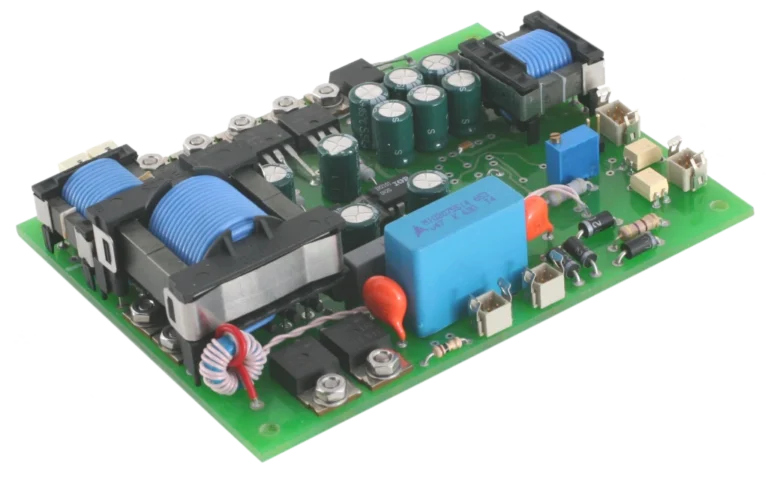

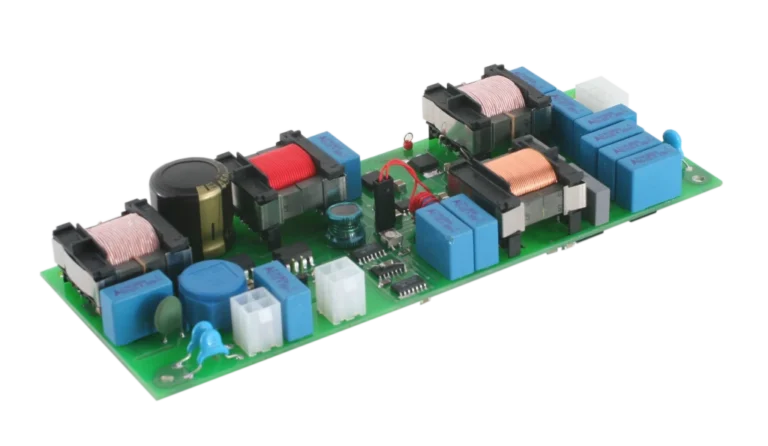

A simmer board is usually a very individual device highly dependent on a number of customer’s system and flashlamp parameters.

We discuss in detail the planned use of the device in order to offer the best solution. This includes as a new modification of existing products development as well as a projects on R&D basis.

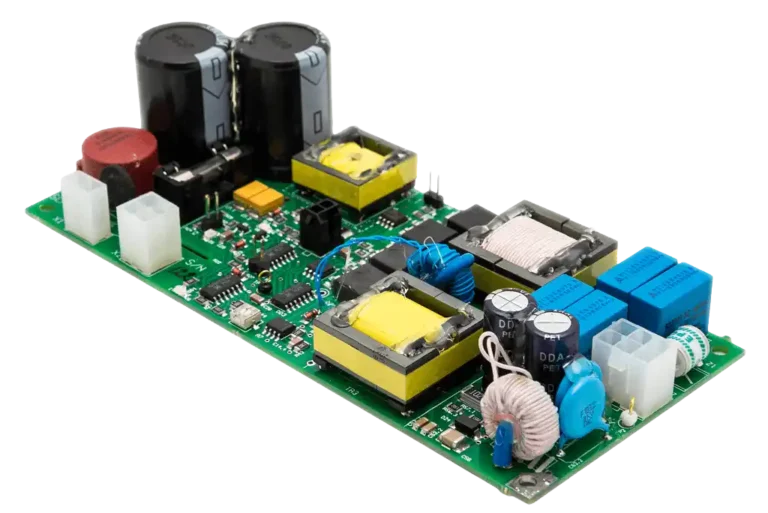

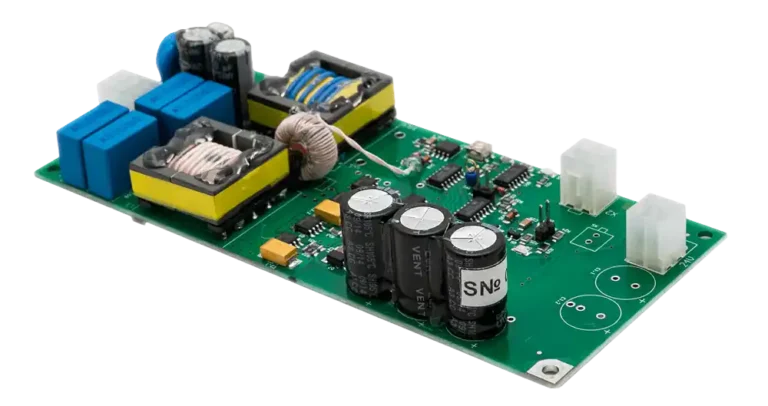

SBZ-2008 is the general-purpose and most popular 24 VDC simmer supply. The main parameters are as follows:

• Input – 24 VDC
• Max. output voltage – 200 V
• Output current – 300-800 mA (regulated with trimpot)
• Max. output power – 70 W

Features

• Flashlamps’ ignition, improvement of their operational lifetime and stability
• Cost-effective solution

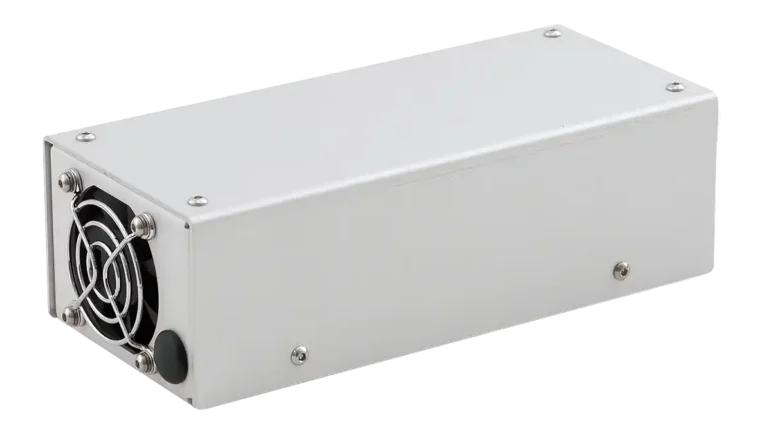

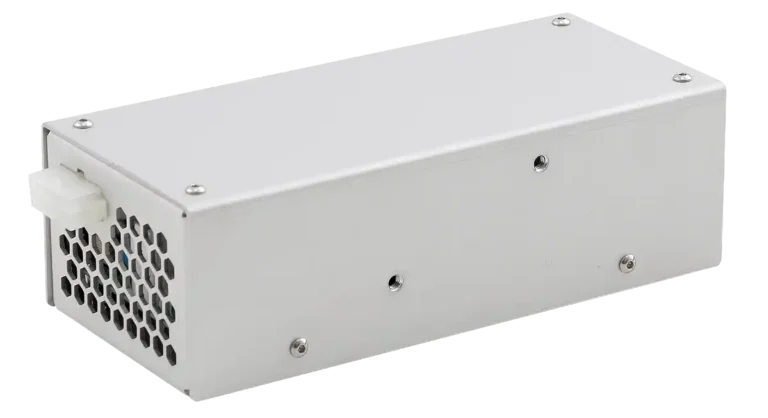

SBZ-3008 is a high-power modification of SBZ-2008 simmer supply. Model is forced air-cooled and suitable for dual-flashlamp operations. The main parameters are as follows:

• Input – 24 VDC
• Max. output voltage – 300 V
• Output current – 300-800 mA (factory preset)
• Max. output power – 100 W

Features

• Flashlamps’ ignition, improvement of their operational lifetime and stability
• High-power solution, capable of driving up to two flashlamps connected in series

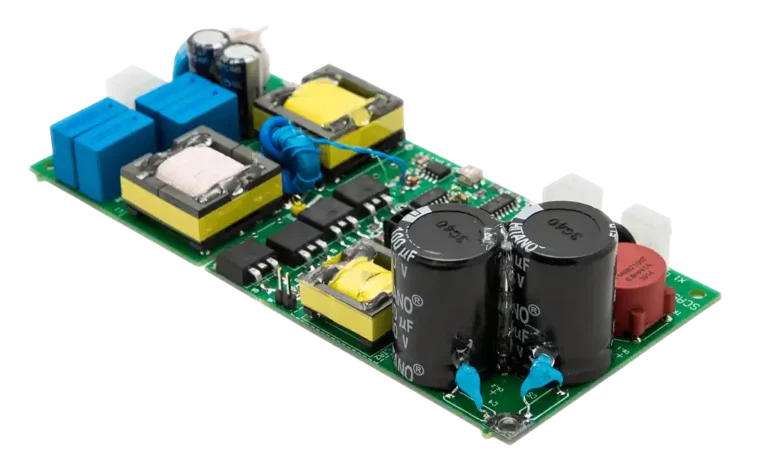

SCA-2008 is the general-purpose and most popular AC simmer supply. The main parameters are as follows:

• Input – 230 VAC
• Max. output voltage – 200 V
• Output current – 300-800 mA (regulated with trimpot)
• Max. output power – 70 W

Features:

• Flashlamps’ ignition, improvement of their operational lifetime and stability
• Cost-effective solution

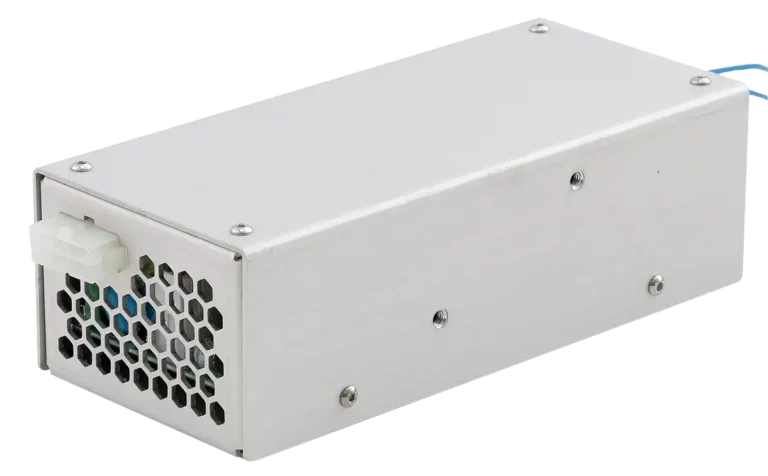

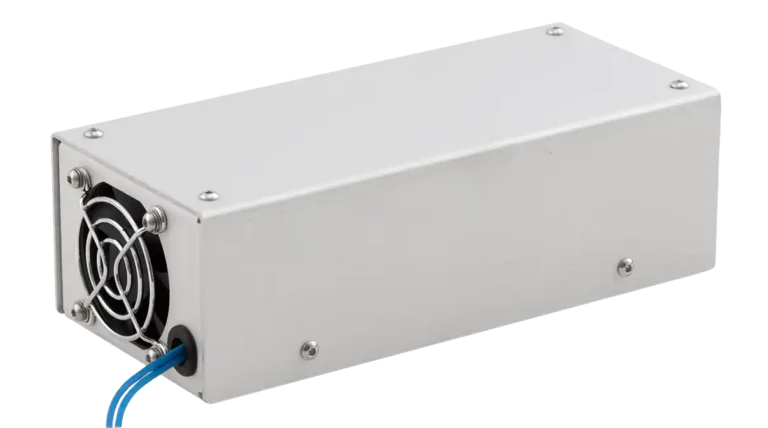

SCA-3008 is a high-power modification of SCA-2008 simmer supply. Model is forced air-cooled and suitable for dual-flashlamp operations. Main parameters are as follows:

• Input – 230 VAC
• Max. output voltage – 300 V
• Output current – 300-800 mA (factory preset)
• Max. output power – 100 W

Features

• Flashlamps’ ignition, improvement of their operational lifetime and stability
• High-power solution, capable of driving up to two flashlamps connected in series
