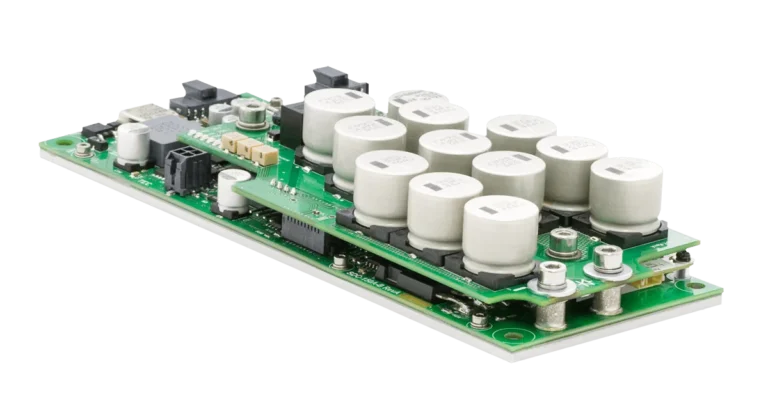

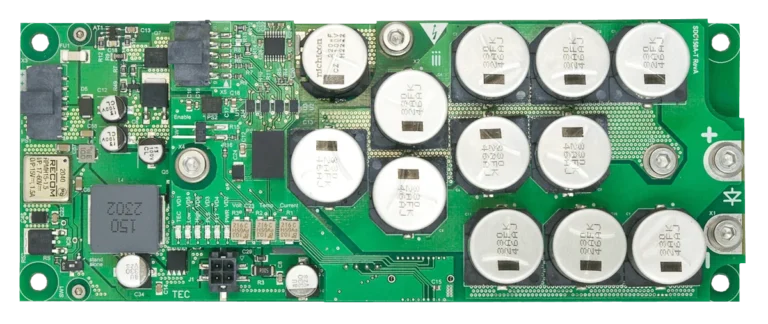

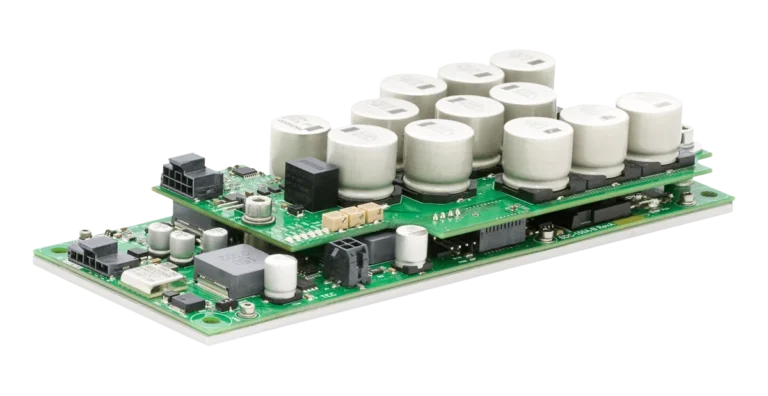

1 / 4 SDC-150 diode controller Applications DPSS Nd:YAG pumping + q-switching Features The module consists of pulsed current source, TEC controller and Pockels cell driver Input – 28±7 V DC Output to diodes – up to 350 A, 140 V, 300 us, 30 Hz (but 50 W max) Pulse width – 50-300 us Repetition rate – up to 30 Hz Rise time – < 20-30 us Modifications are possible Read more about SDC-150 diode controller Read more about SDC-150 diode controller

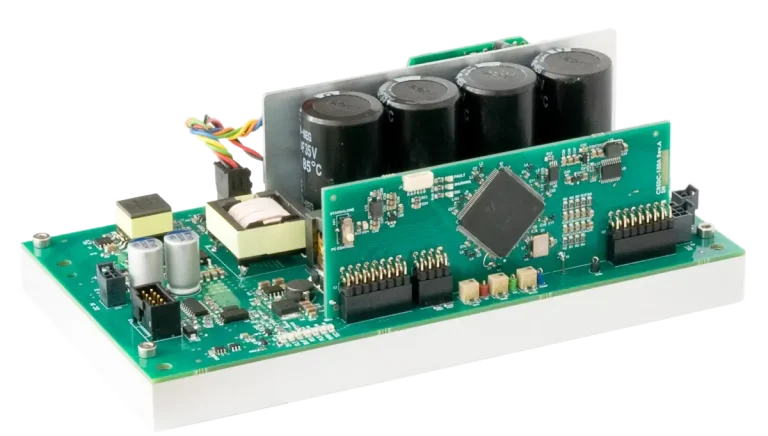

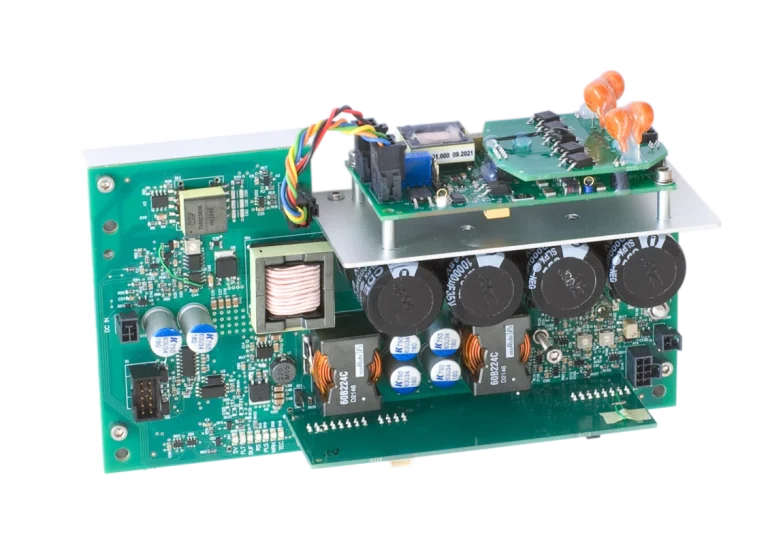

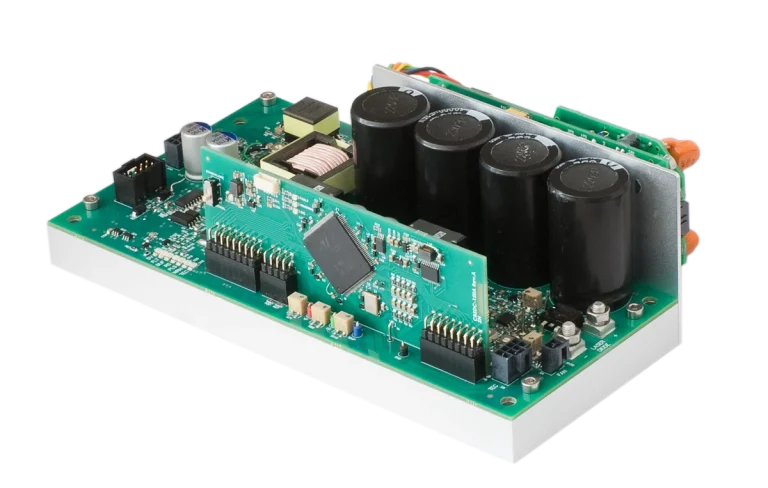

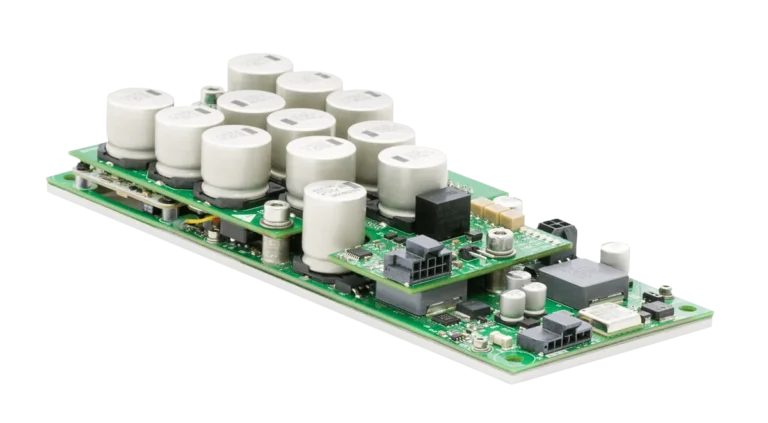

1 / 3 SDC-150A diode controller Applications DPSS Nd:YAG pumping + q-switching Features The module consists of pulsed current source, TEC controller and Pockels cell driver (DKDP or LiNbO3) Input – 28±7 V DC Output diode current – up to 150 A, 25 V, 300 us, 30 Hz (but 20 W max) Pulse width – 50 – 300 us Repetition rate – up to 30 Hz Rise / fall time – < 50 us Modifications are possible Read more about SDC-150A diode controller Read more about SDC-150A diode controller

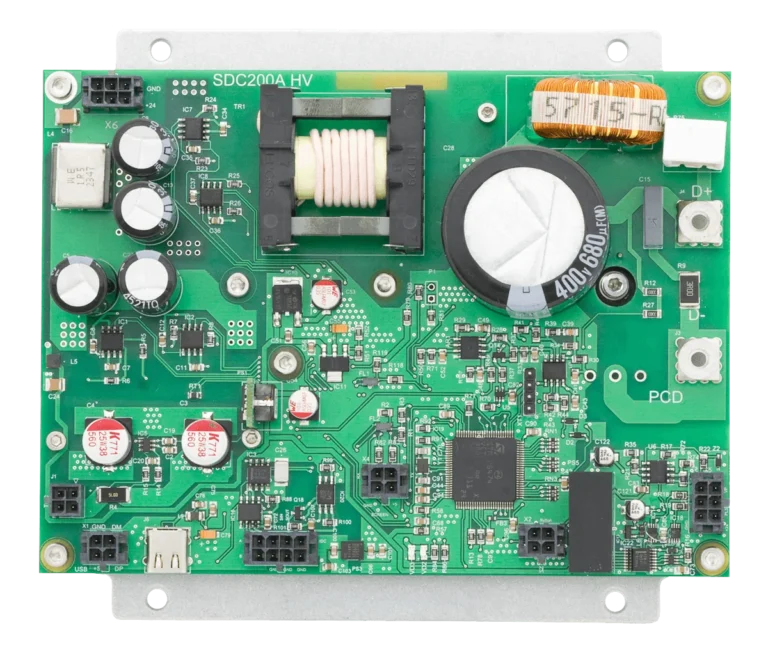

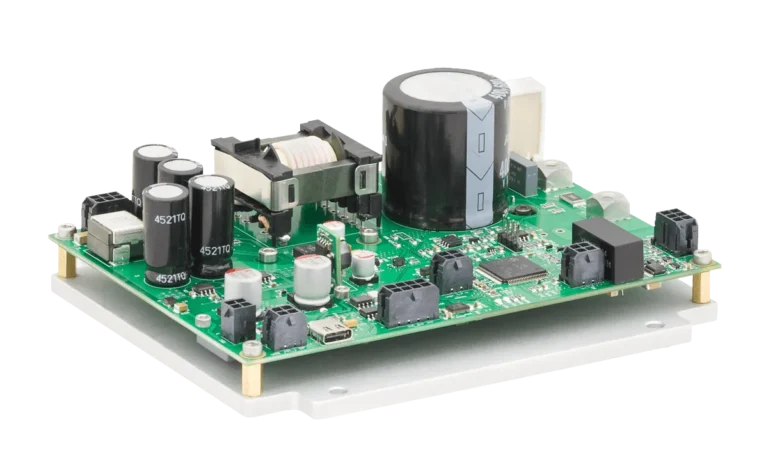

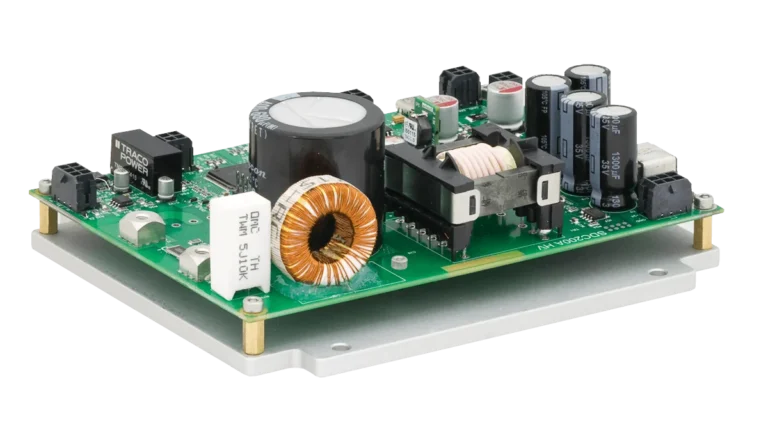

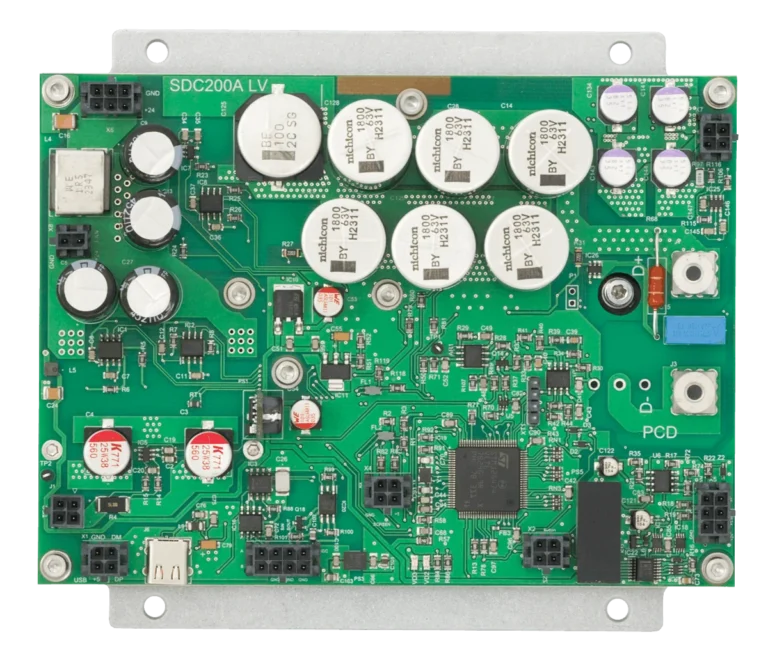

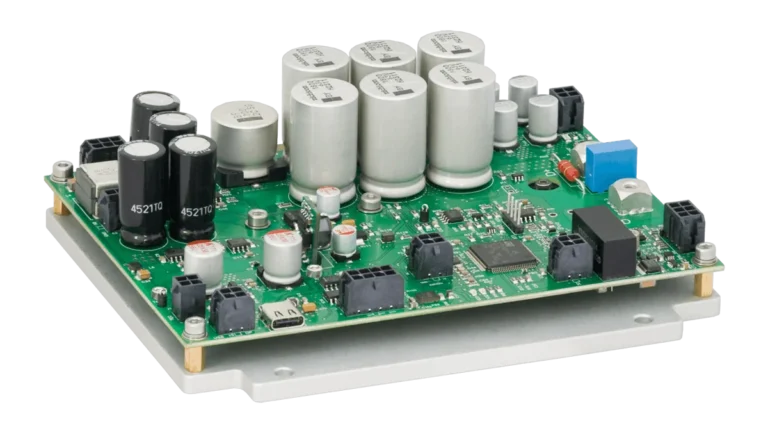

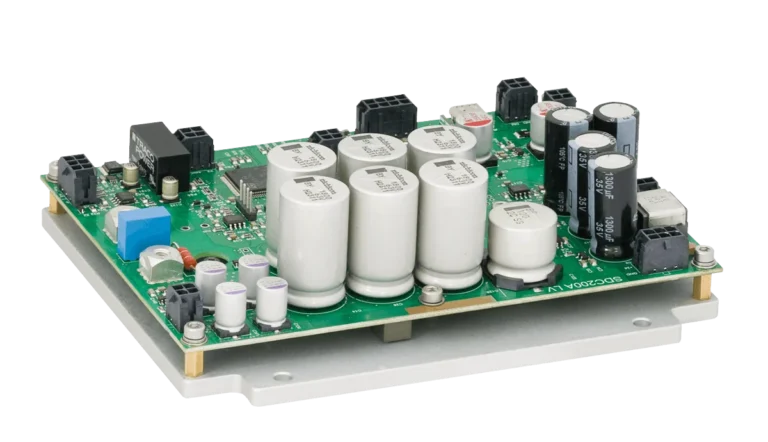

1 / 6 SDC-200 diode driver Applications Diode pumping for DPSS lasers such as Nd:YAG Features Input – 24 V DC Output (for different models) – up to 400 A, up to 450 V, up to 100 W Pulse width – 50-300 us Repetition rate – up to 100 Hz Rise time – < 20-30 us typically 1x high-power TEC + 1x low-power TEC inside Possibility to control an extra external Pockels cell driver Read more about SDC-200 diode driver Read more about SDC-200 diode driver

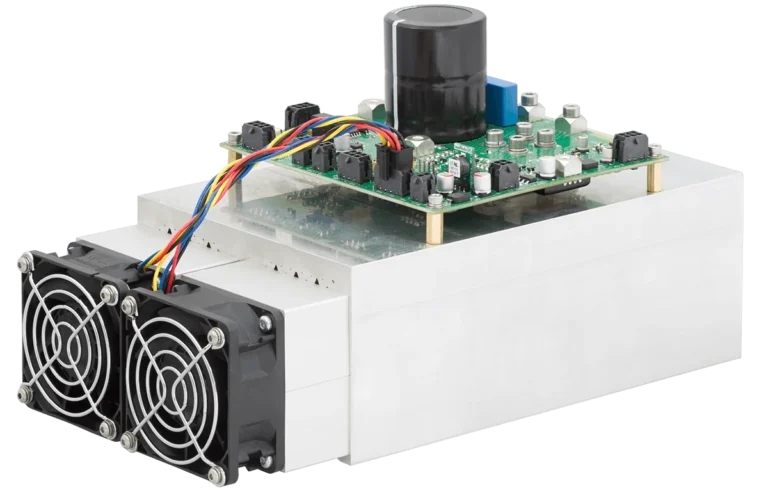

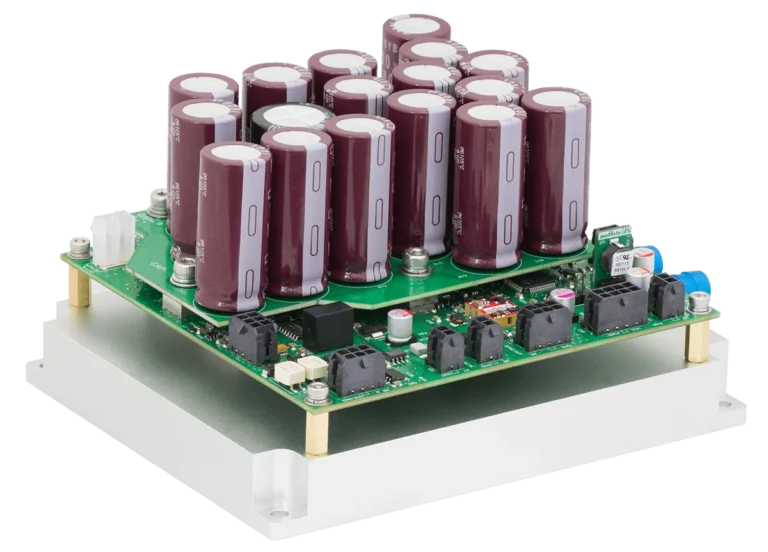

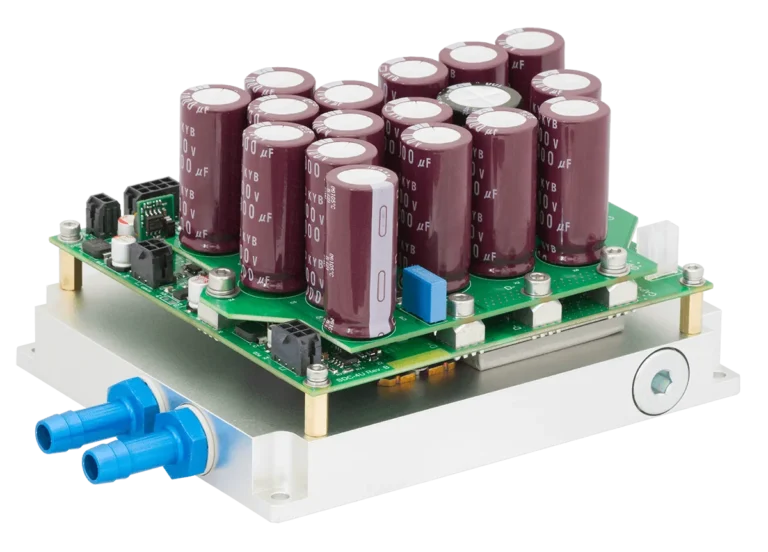

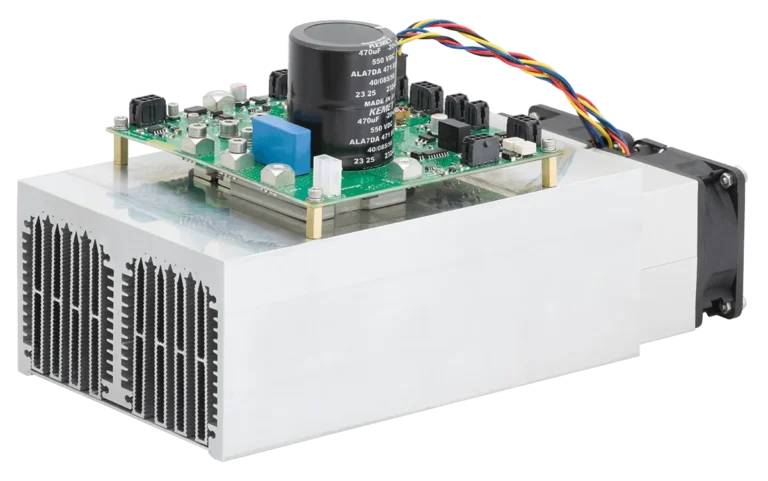

1 / 4 SDC-400 diode driver Applications Diode pumping of DPSS such as Nd:YAG Features Output diode current – up to 400 A, 500 V, 300 us (but 1500 W max) Pulse width – 50-300 us Repetition rate – up to 500 Hz Rise time – < 20-30 us typically Modifications are possible Read more about SDC-400 diode driver Read more about SDC-400 diode driver

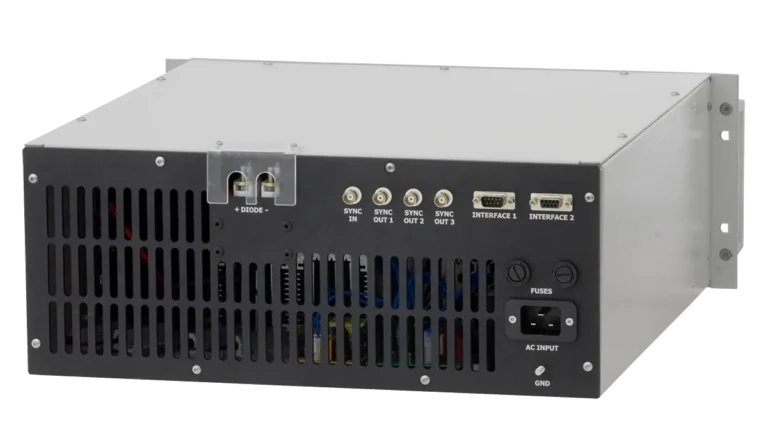

1 / 3 SDC-4U diode driver Applications Power supply for pump diodes of DPSS lasers such as Nd:YAG Features Input – 110-240 V AC Output diode current – up to 400 A, 500 V, 300 us (but 1500 W max) Pulse width – 50-300 us Repetition rate – up to 50 Hz Rise time – < 20-30 us typically Modifications are possible Read more about SDC-4U diode driver Read more about SDC-4U diode driver

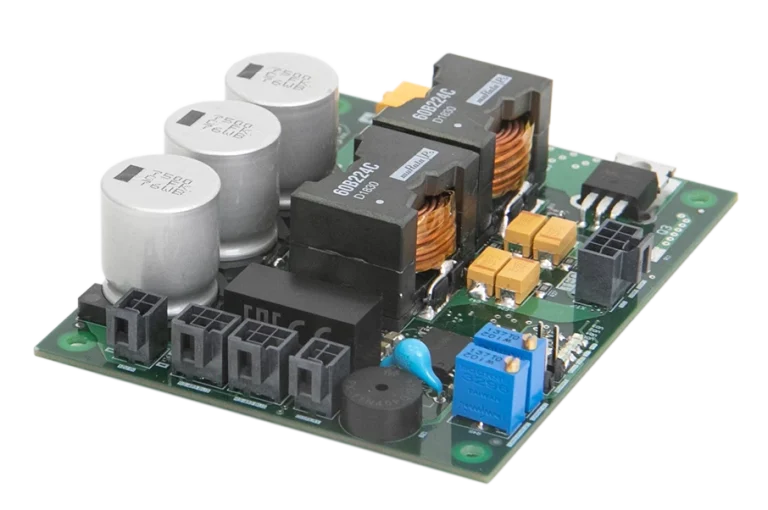

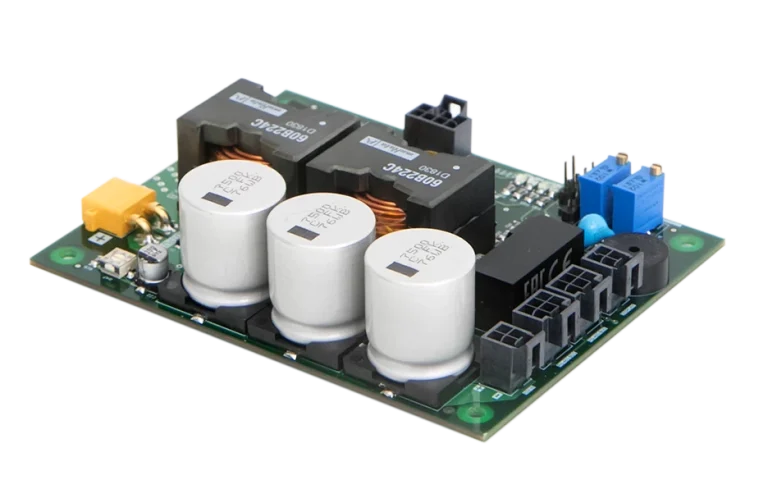

1 / 2 SDC-50A Diode Driver Applications Nd:YAG pumping (e.g. microchip Nd:YAG and others) Features Input – 12-15 V DC Output current – up to 50 A Compliance voltage – 4-6 V (in dependence on input voltage) Pulse width – up to 500 us Repetition rate – up to 50 Hz Risetime/falltime – < 25 us / 15 us respectively There is a powerful Peltier controller onboard Read more about SDC-50A Diode Driver Read more about SDC-50A Diode Driver

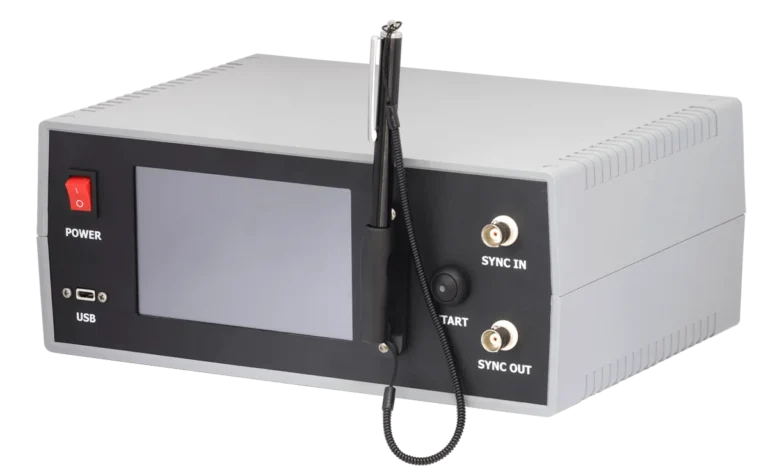

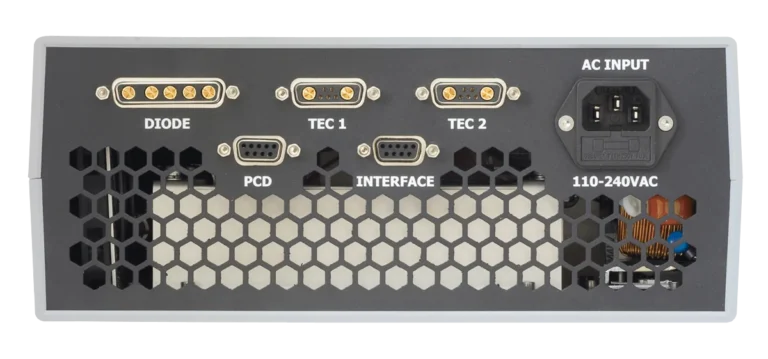

1 / 3 SDC-BT diode driver Applications Power supply for pump diodes of DPSS lasers such as Nd:YAG Features Input – 110-240 V AC Output (for different models) – up to 400 A, up to 450 V, up to 100 W Pulse width – 50-300 us Repetition rate – up to 50/100 Hz Rise time – < 20-30 us typically 1x high-power TEC + 1x low-power TEC inside Possibility to control an extra external Pockels cell driver Read more about SDC-BT diode driver Read more about SDC-BT diode driver
