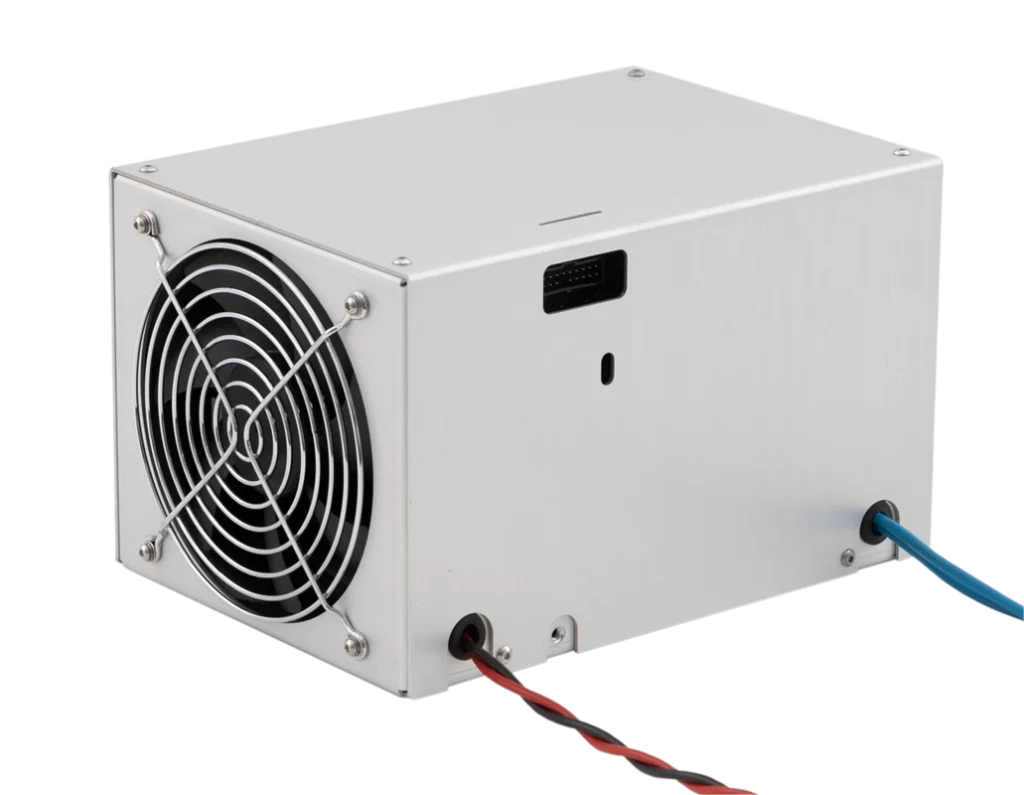

PCA-20 / PCA-25 capacitor charging power supplies

In stock

Applications

Capacitor charging for medical and industrial pulsed energy systems

Features

	PCA-20	PCA-25
• Input voltage, VAC	110-240 V	200-240 V
• Output power	2 kW	2.5 kW

Up to 1500 V output voltage
Meets all safety and EMC requirements for medical devices
3-year guarantee (option)

In stock

Downloads: Downloads

Download manual (1 MB)

pca-20-manual-en.pdf Download manual (1 MB) Updated March 10, 2026
Download PCA-20 / PCA-25 family Certificates of Conformity to IEC 60601-1, IEC 60601‑1‑2, EN 60601-1 and CE declaration of conformity (p/n - PCA‑20‑500V‑PD, PCA‑20‑800V‑PD, PCA‑20‑1000V‑PD, PCA‑25‑350V‑PD) (2 MB)

pca-20-certificates.pdf Download PCA-20 / PCA-25 family Certificates of Conformity to IEC 60601-1, IEC 60601‑1‑2, EN 60601-1 and CE declaration of conformity (p/n - PCA‑20‑500V‑PD, PCA‑20‑800V‑PD, PCA‑20‑1000V‑PD, PCA‑25‑350V‑PD) (2 MB) Updated March 10, 2026
Download STEP model for PCA-20 (Zip archive, 12 MB)

pca-20-step.zip Download STEP model for PCA-20 (12 MB) Updated March 10, 2026

File	Size	Updated
pca-20-manual-en.pdf Download manual (1 MB) Download manual	1 MB	March 10, 2026
pca-20-certificates.pdf Download PCA-20 / PCA-25 family Certificates of Conformity to IEC 60601-1, IEC 60601‑1‑2, EN 60601-1 and CE declaration of conformity (p/n - PCA‑20‑500V‑PD, PCA‑20‑800V‑PD, PCA‑20‑1000V‑PD, PCA‑25‑350V‑PD) (2 MB) Download PCA-20 / PCA-25 family Certificates of Conformity to IEC 60601-1, IEC 60601‑1‑2, EN 60601-1 and CE declaration of conformity (p/n - PCA‑20‑500V‑PD, PCA‑20‑800V‑PD, PCA‑20‑1000V‑PD, PCA‑25‑350V‑PD)	2 MB	March 10, 2026
pca-20-step.zip Download STEP model for PCA-20 (12 MB) Download STEP model for PCA-20	12 MB	March 10, 2026

Reply within 1 business day

FAQ | Return Policy | Warranty Policy | Shipping info | Pricing

Product Description

PCA-20 / PCA-25 capacitor charging power supplies are high-frequency switch-mode converters, which transform AC input to regulated high voltage DC output to charge capacitors. They were developed for the use in pumping systems of flashlamp-pumped solid-state laser devices. However, they have found their application also in non-laser medical systems, e.g. for magnetic pulse stimulators.

Maximum output power is 2000 W and 2500 W for PCA-20 and PCA-25 respectively. Several variants of modules are offered with different maximum output voltage level (Vmax), selected from 300 V to 1500 V at the moment of order. Higher output voltages are available on request. During operation an output voltage level can be chosen in working range (0 V – Vmax) by user, applying a DC voltage to the respective pin.

The actual output power depends on relation between actual operating voltage and Vmax. We would recommend to pick Vmax as close as possible to your operating voltage in order to utilize completely the output power of the device.

By default, modules are optimized for partial discharge applications. Complete discharge modifications are available on request.

Modules are intended to be used for medical purposes, in medical laser equipment. All the device parameters meet the latest versions of medical standards requirements: IEC 60601-1:2005/AMD1:2012 for electrical safety and IEC 60601-1-2:2014 for EMC, so, PCA‑20 and PCA‑25 can be used in medical systems without any modifications, any additional filtration or additional means of protection.

High reliability and efficiency, easy to integrate OEM design and a lot of flexible parameters for customized solutions allows PCA-series to be used in wide variety of applications, both medical and industrial.

Technical Specifications

Input:

Voltage

110-240 V AC, 50/60 Hz for PCA-20
200-240 V AC, 50/60 Hz for PCA-25

Current

< 21 A for PCA-20
< 15 A for PCA-25

Output:

Maximal output power

2000 W for PCA-20
2500 W for PCA-25

Maximal output voltage

300/500/700/1000/1500 V standard modifications
other on request (up to 2000 V)

Modifications

partial discharge modification,
complete discharge modification

Stability

< 0.5%

Ripple / hysteresis

< 0.5%

Efficiency

more than 85%

Safety:

PFC coefficient

> 0.98 (active)

Leakage current

< 200 uA

Safety standard

IEC 60601-1

EMC

IEC 60601-1-2

Protections

from open-circuit
from short-circuit
from overheating
from overvoltage

Environment:

Cooling

forced air (built-in fan)

Operation temperature

+10 … +40 °C

Storage temperature

-20 … +60 °C

Humidity

0 … 90%, non-condensing

Other:

Size (LxWxH)

216x153x132 mm

Weight

2.9 kg

Options

Many parameters of the power supply can be taylored to your needs. Some of them are listed below:

output voltage incl. non-standard
optimization for complete discharge, partial discharge or other custom regime
reduced or bursted output power
interfaces (calibraton, logic)
type and location of connectors
cables
coverage case

How To Order

Partial discharge modifications (PCA-20-…-PD)

Model *

Description

PCA-20-300V-PD

Maximal output voltage 300 V
Partial discharge modification

PCA-20-500V-PD

Maximal output voltage 500 V
Partial discharge modification

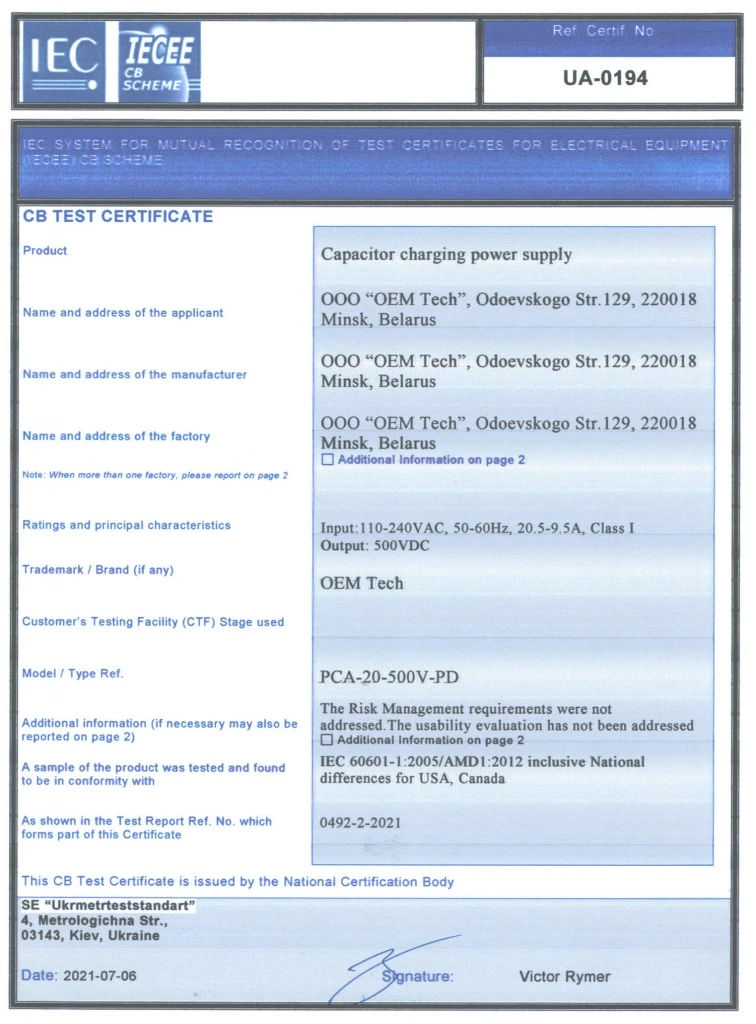

Model certificates 1, 2

PCA-20-700V-PD

Maximal output voltage 700 V
Partial discharge modification

PCA-20-800V-PD

Maximal output voltage 800 V
Partial discharge modification

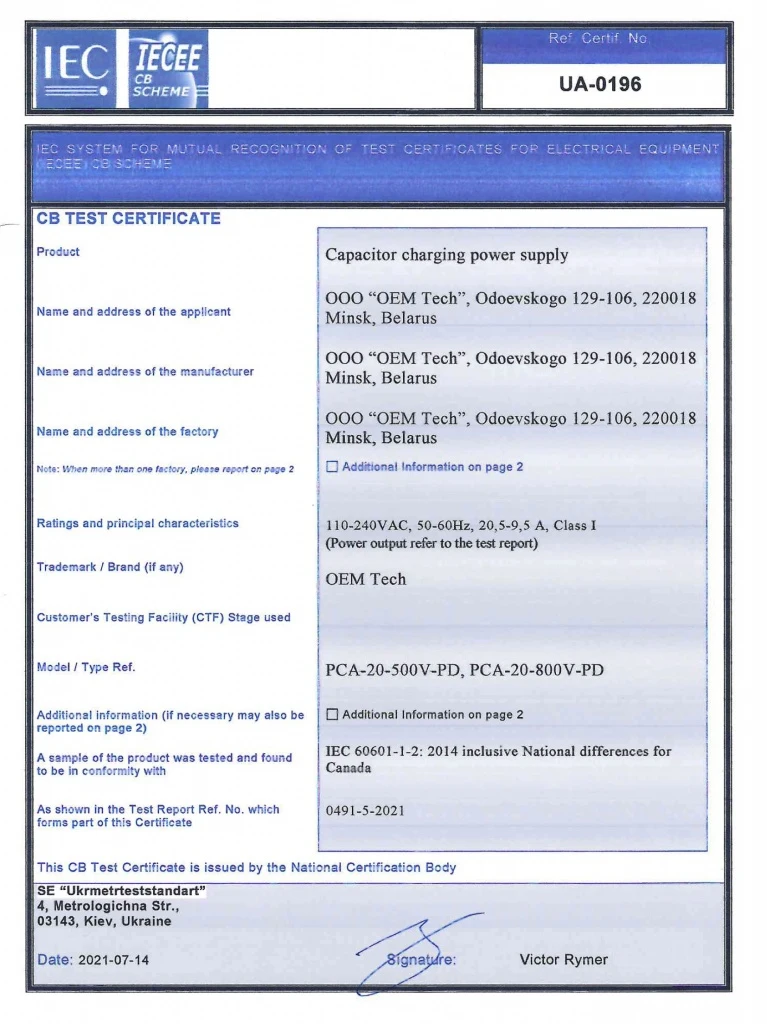

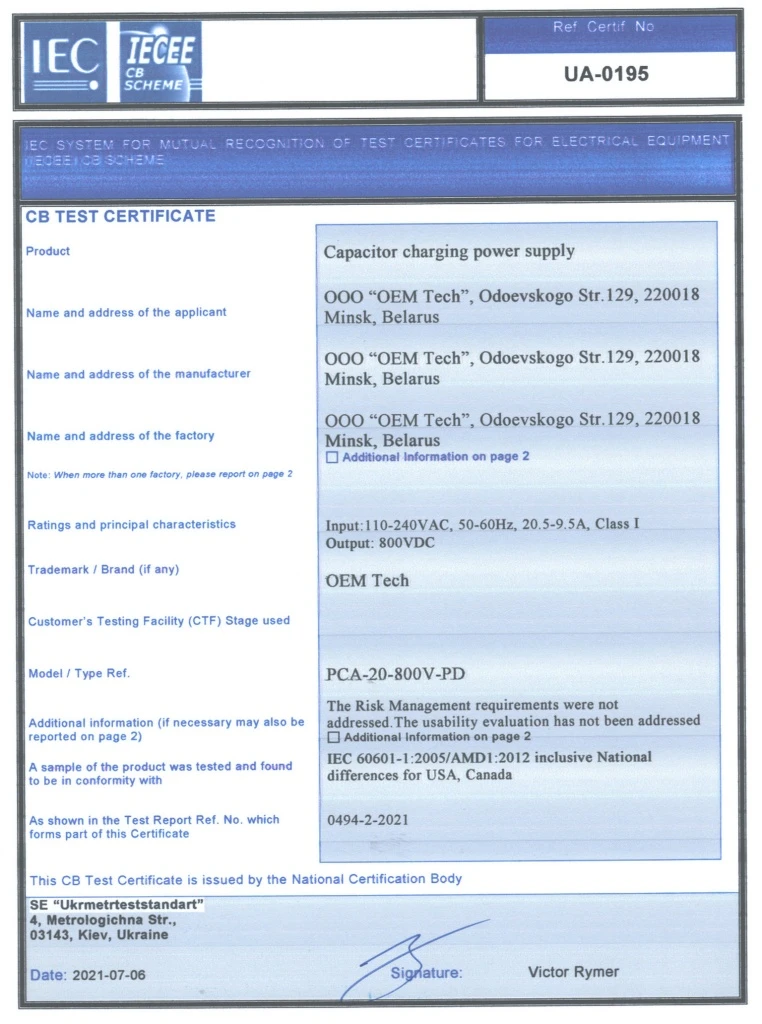

Model certificates 1, 2

PCA-20-1000V-PD

Maximal output voltage 1000 V
Partial discharge modification

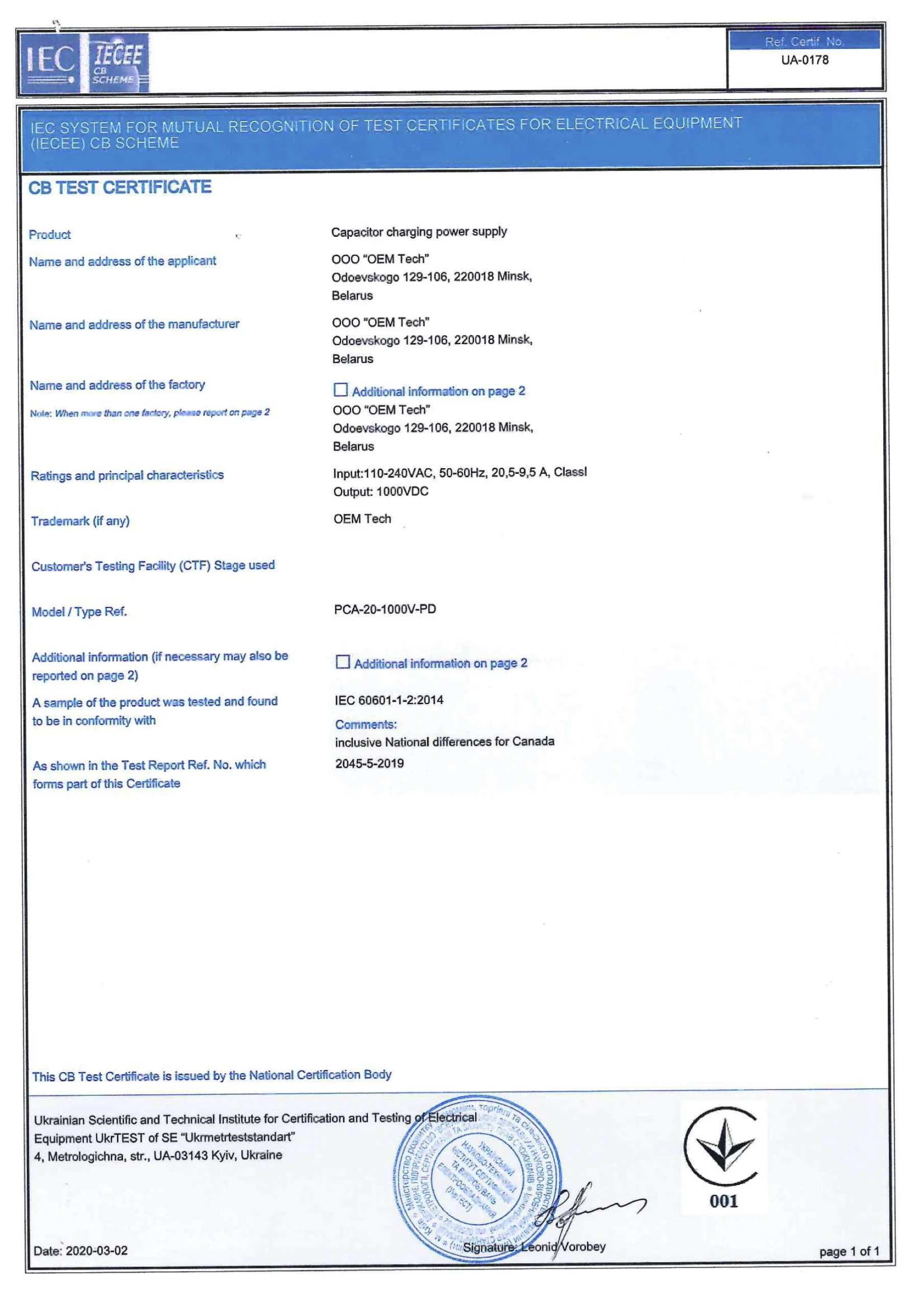

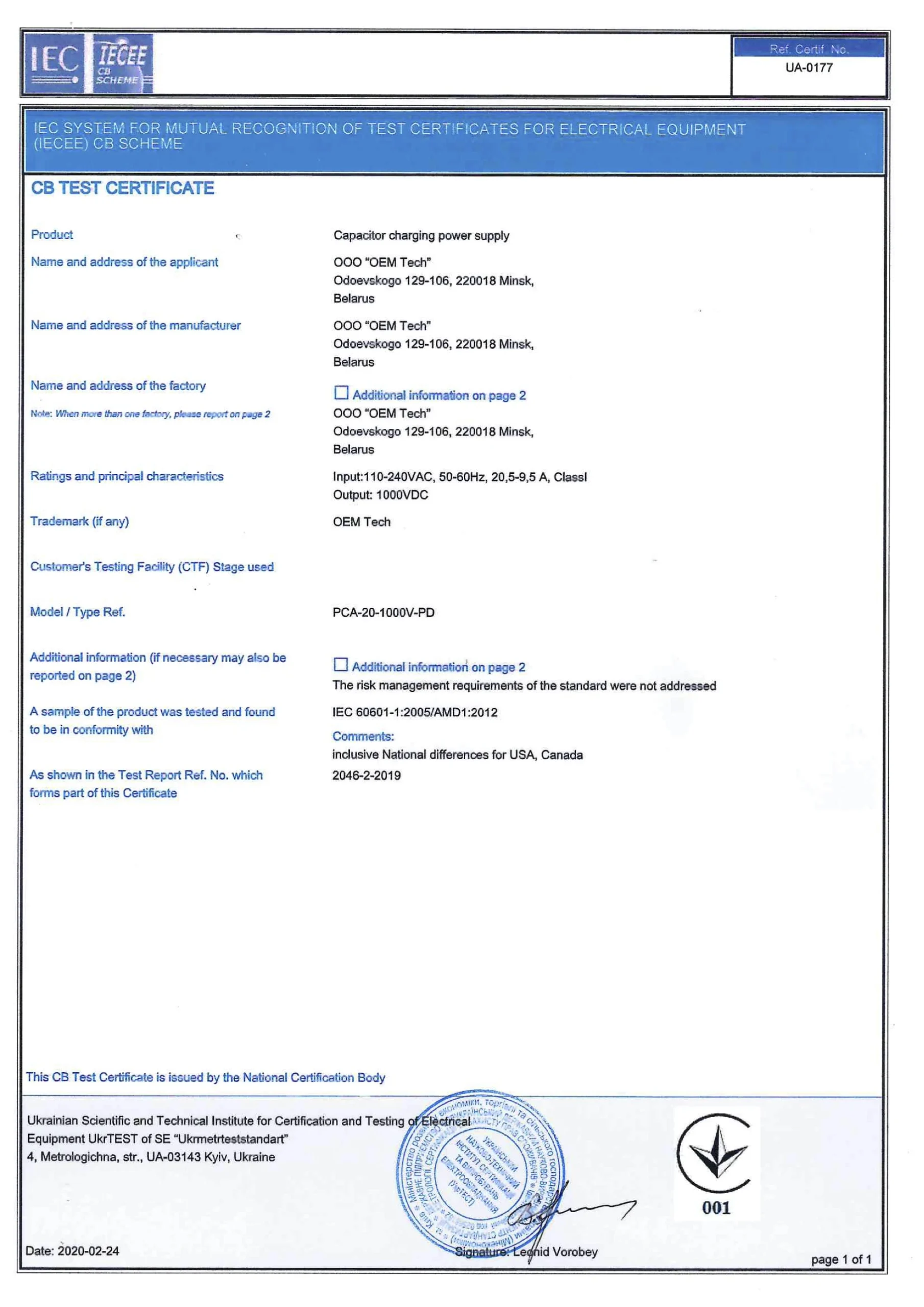

Model certificates 1, 2

PCA-20-1500V-PD

Maximal output voltage 1500 V
Partial discharge modification

(*) Other output voltages are available on request

Complete discharge modifications (PCA-20-…-CD)

Model *

Description

PCA-20-700V-CD

Maximal output voltage 700 V
Complete discharge modification

PCA-20-1000V-CD

Maximal output voltage 1000 V
Complete discharge modification

PCA-20-1500V-CD

Maximal output voltage 1500 V
Complete discharge modification

(*) Other output voltages are available on request

High power modifications (PCA-25-…-PD)

Model *

Description

PCA-25-350V-PD

Maximal output power 2500 W
Input voltage 200-240 VAC
Maximal output voltage 350 V
Partial discharge modification

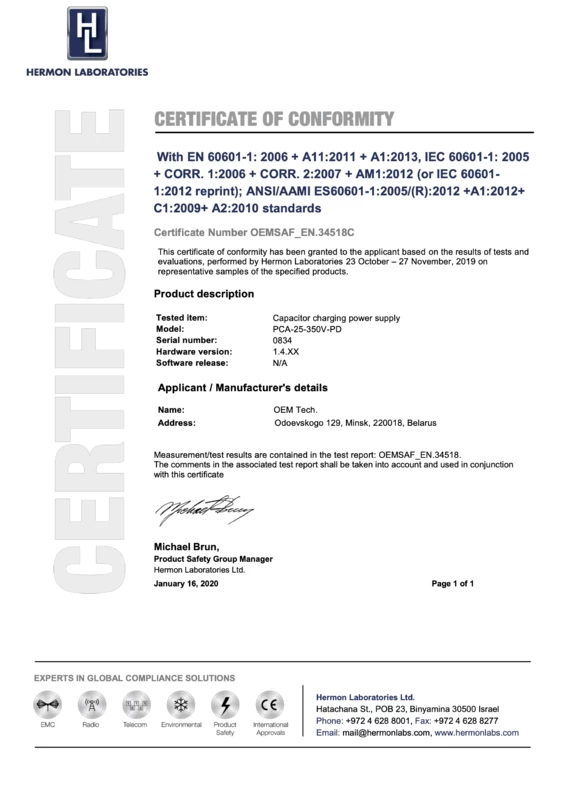

Model certificate 1

(*) Other output voltages are available on request

Example

PCA-20-500V-PD

Maximal output voltage 500 V
Partial discharge modification
