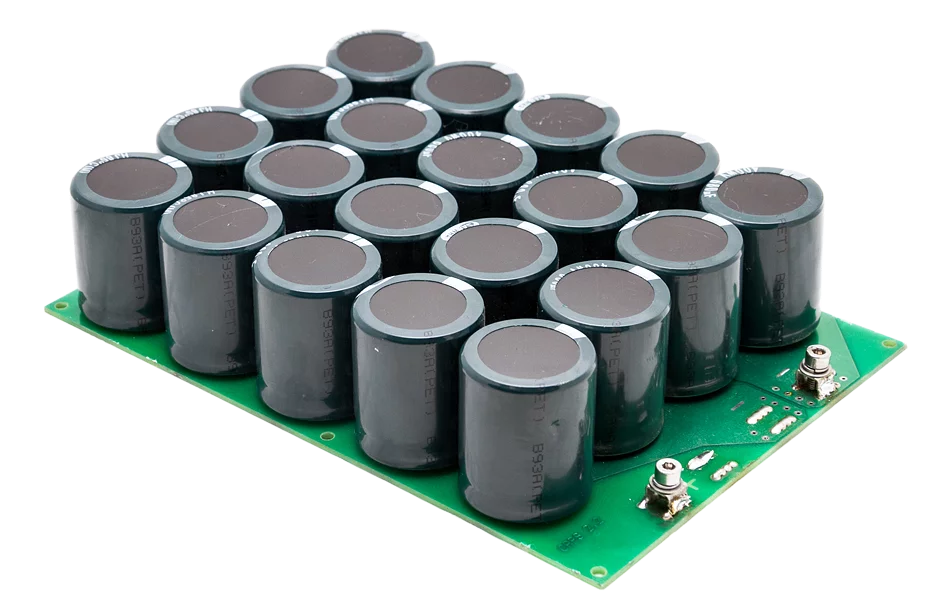

CB‐700V‐5mF Capacitor Bank

CB‐700V‐5mF Capacitor Bank

Product details

In stock

Description:

A capacitor bank with PCB form-factor, composed of 20 small aluminum electrolytic capacitors (350V/1000uF each) connected in series and in parallel, can be used in place of conventional large cylindrical capacitor banks.

Application:

Capacitor bank for electrical energy storage and discharge in medical and industrial pulsed power supplies.

Technical Specifications:

Voltage Rating	700 V
Total Capacitance	5 mF (5,000 uF)
Composition	20pcs 350V/1000uF capacitors connected in series and in parallel
Capacitor Lifetime Rating	>2000h @ 85 °C
Shunting Resistors	Yes, ~1MOhm in parallel with each individual capacitor

Operational Parameters:

Max. Average Power	2 kW per board typically
Max. Capacitor Temperature	<85 °C (max), <65 °C (recommended)
Cooling	Passive (no external fan required)

Environment:

Operation temperature	+10…+40 °C
Storage temperature	-20…+60 °C
Humidity	<90%, non-condensing

Physical:

Dimensions (LxWxH)	Approx. 205x145x55 mm
Weight	<2 kg

In stock

Downloads: Downloads

Download manual (1 MB)

cb-manual-en.pdf Download manual (1 MB) Updated March 10, 2026
Download STEP model (Zip archive, 264 KB)

cb-350v-700v-step.zip Download STEP model (264 KB) Updated March 10, 2026

File	Size	Updated
cb-manual-en.pdf Download manual (1 MB) Download manual	1 MB	March 10, 2026
cb-350v-700v-step.zip Download STEP model (264 KB) Download STEP model	264 KB	March 10, 2026
