CB‐450V‐14mF Capacitor Bank

Product details

Description:

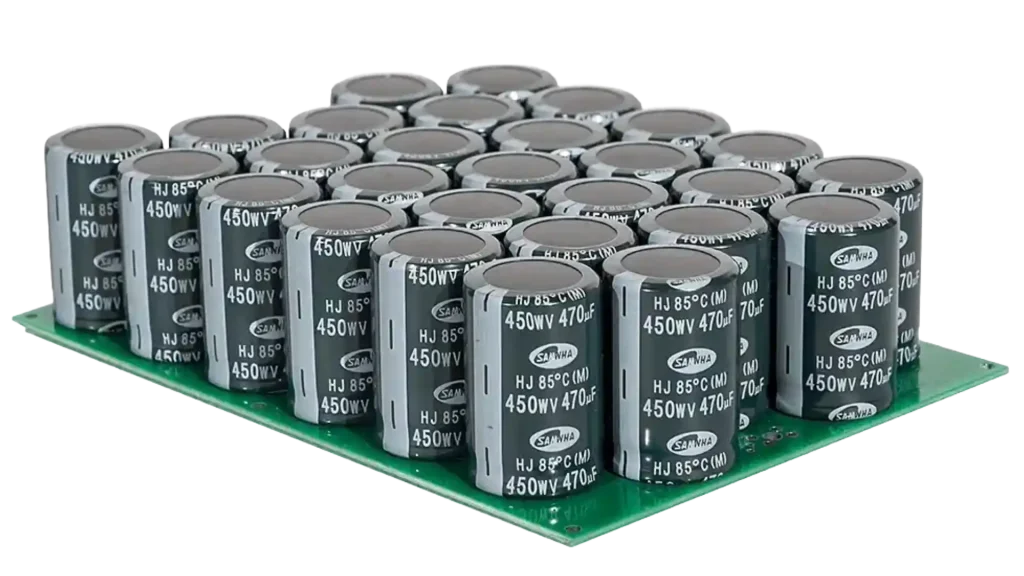

A capacitor bank with PCB form-factor, composed of 28 x C = 470µF small aluminum
electrolytic capacitors connected in parallel, can be used in place of conventional
large cylindrical banks.

Application:

Capacitor bank for electrical energy storage/discharge in medical and industrial
pulsed power supplies.

Technical Specifications:

Voltage Rating 450 V
Total Capacitance 13 mF
Capacitor Lifetime Rating >2000h @ 85 °C
Shunting Resistors Yes, ~1MΩ in parallel w/each individual cap

Operational Parameters:

Max. Average Power 2 kW per board typically
Max. Capacitor Temperature <85 °C (max), <65 °C (recommended)
Cooling Passive (no external fan required)

Environment:

Operation temperature +10…+40 °C
Storage temperature -20…+60 °C
Humidity 0…90%, non-condensing

Physical:

Dimensions (LxWxH) 210 · 150 · 60 mm
Weight <2.0 kg
