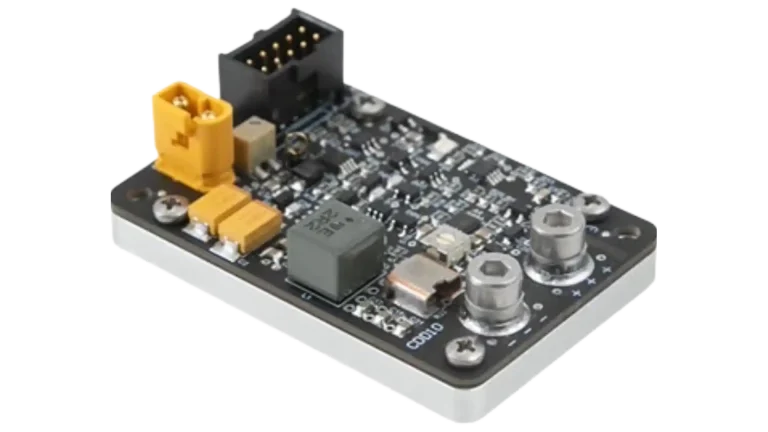

CCD-series are Constant Current Diode Drivers:

• DC input
• Output current up to 25A CW
• Output power up to 200W CW
• High efficiency
• Compact dimensions – 60x40x20mm
• Affordable pricing

High-Power Laser Diodes Driver and TEC controller of LDC series

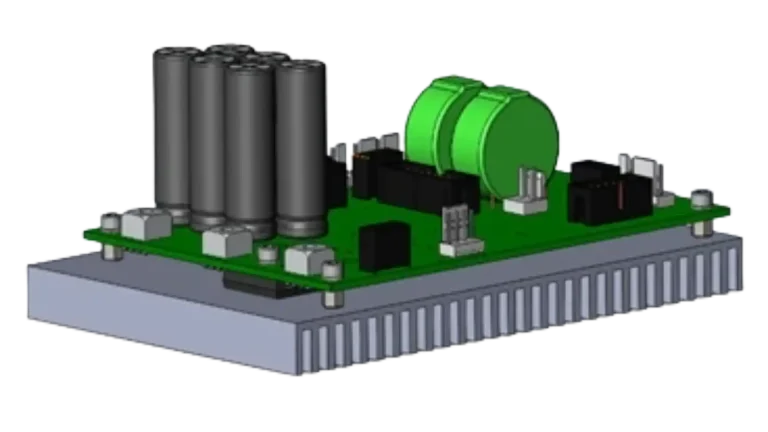

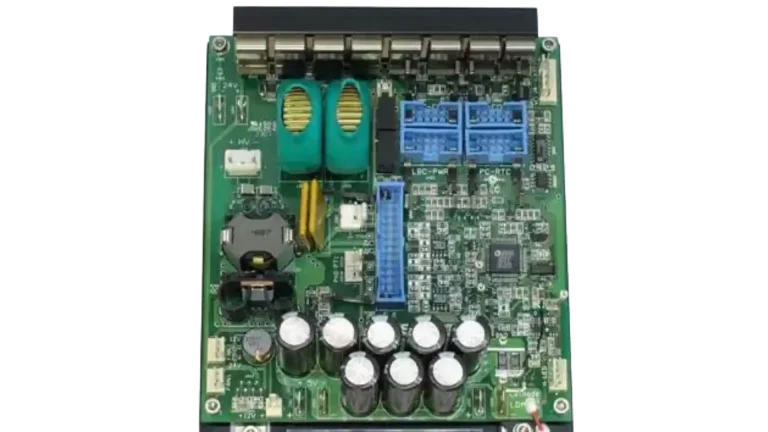

Laser diode controller LDC-4 combines laser diode driver and two independent thermoelectric controllers (TEC). It is designed to provide pulsed and continuous modes of operation for laser diode modules used both independently and as sources of diode pumping for solid-state lasers (DPSSL) in the laboratory, medical and technological laser devices and systems. The power supply is controlled from a computer via VLC software.

Key Features:

• Provides up to 400 A pulsed LD current and up to 400 V LD voltage (max values of voltage and current are depending on LDC-4 modification, see NOTE ٠ 1 of Specification Section)
• Precisely set LD voltage via VLC software;
• Control of the of LD current pulses timing in a wide range of parameters;
• Synchronization with external devices;
• 2 independent thermoelectric controllers (TEC1, TEC2) and one additional temperature sensor (Ths3);
• Power supply for additional low-power pilot laser;
• Measurement of external photodiode signal;
• 3 external interlocks;
• Controlled from computer via COM port connector in accordance with the RS-232 standard.

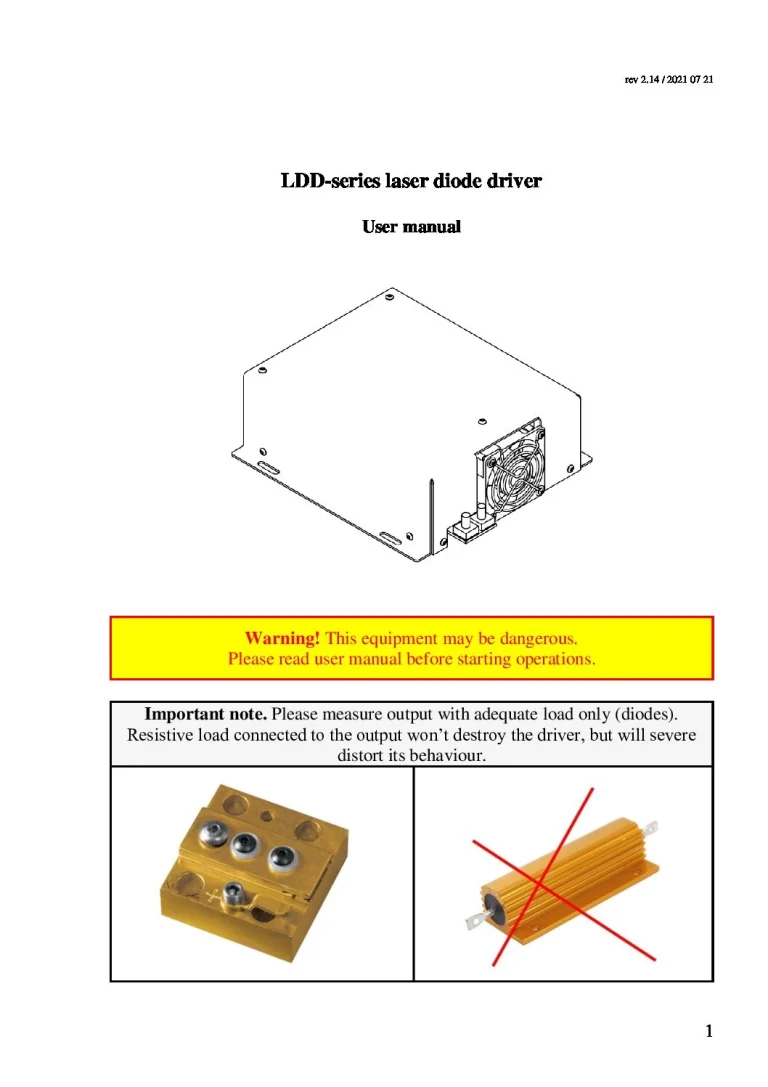

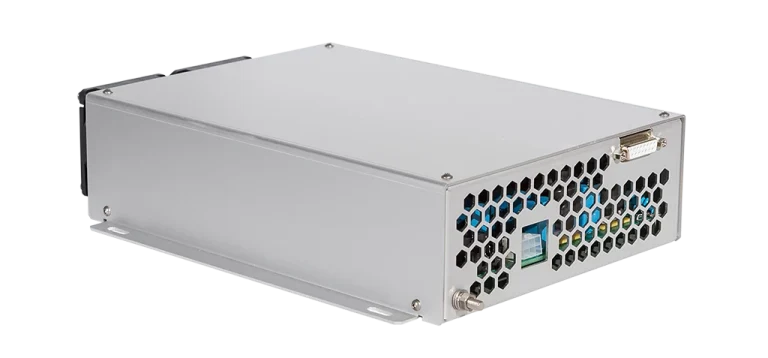

LDD-1500 is a high power Laser Diode Driver, operating in both CW and pulsed modes. CW and pulsed laser diode driver of high power. Module is powered with AC input and cooled with embedded fans, other parameters/features are as follow:

• Input voltage – 230 VAC or 110/230 VAC;
• Output power – up to 2000 W;
• Compliance voltage – up to 200 V;
• Output current – up to 100 A;
• Wide range of input voltages;
• 0.98 power factor correction (PFC) value;
• Low EMI and leakage current.

LDD-250 is a medium power Laser Diode Driver, operating in both CW and pulsed modes. Module is powered with AC input and cooled with embedded fans, other parameters/features are as follow:

• Input voltage – 230 VAC or 110/230 VAC;
• Output power – up to 400 W;
• Output current – up to 100 A;
• Compliance voltage – up to 100 V;
• Wide range of input voltages;
• 0.98 power factor correction (PFC) value;
• Low EMI and leakage current.

PDD-1000 is a pulsed laser diode driver. Module has DC input and cooled with embedded fans. Other parameters are as follow:

• Input – 300 VDC (other on request)
• Output power – up to 1000 W (averaged), up to 10 kW (peak)
• Output current – up to 200 A
• Compliance Voltage – up to 200 V
• Medical Grade, IEC 60601-1 ed.3 compliance

PDD-1600 is probably the most powerful diode driver in the aesthetic world. Module has wide range 100-240 VAC input and cooled with embedded fans. Other parameters are as below:

• Input – 100-240 VAC;
• Output power – up to 1600 W (average), up to 10 kW (peak);
• Output current – up to 200 A;
• Compliance voltage – up to 100 V;
• Medical grade (full comliance with IEC 60601-1 ed. 3)

PDD-300 is a pulsed laser diode driver. Module has wide range 100-240 VAC input and cooled with embedded fans. Other parameters are as follow:

• Input – 100-240 VAC
• Output power – up to 300 W (averaged), up to 5 kW (peak)
• Output current – up to 200 A
• Compliance Voltage – up to 50 V
• Medical Grade, IEC 60601-1 ed.3 compliance
