Capacitor charging
-
CB‐350V‐20mF Capacitor Bank
CB-350V-20mF – bank of Aluminum Electrolytic Capacitors, consisting of 20 small electrolytic capacitors, 1000 μF each, can be used as an alternative to conventional, tall, cylindrical banks. Parameters are: Maximal voltage – 350 V Nominal capacitance – 20,000 μF Total Stored Energy – ~1200 J Rating – 2000 hours @ 85°C Dimensions – 21x15x6 cm3…
Read more -
CB‐450V‐14mF Capacitor Bank
CB-450V-14mF – bank of Aluminum Electrolytic Capacitors, consisting of 28 small, individual caps, 470 μF each, can be used instead of conventional, tall, cylindrical banks. Parameters are: Maximal voltage – 450 V Nominal capacitance – 14000 μF Total stored energy ~1400 J Rating – 2000 hours @ 85°C Dimensions – 21x15x6 cm3 You may also…
Read more -
CB‐700V‐5mF Capacitor Bank
CB-700V-5mF – bank of Aluminum Electrolytic Capacitors, consisting of 20 small electrolytic capacitors, 1000 μF each, can be used instead of conventional large caps. Parameters are: Maximal voltage – 700 V Nominal capacitance – 5000 μF Total Stored Energy – ~1200 J Rating – 2000 hours @ 85°C Dimensions – 21x15x6 cm3 You may also…
Read more -
CB‐900V‐3.5mF Capacitor Bank
CB-900V-3.5mF capacitor bank – bank of Aluminum Electrolytic Capacitors, consisting of 28 small electrolytic capacitors, 470 μF each, can be used instead of conventional, tall, cylindrical banks. Parameters are: Maximal voltage – 900 V Nominal capacitance – 3500 μF Total stored energy ~1400 J Rating – 2000 hours @ 85°C Dimensions – 21x15x6 cm3 You…
Read more -

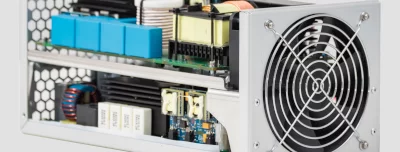

Examples of custom capacitor chargers
Parameters that can be changed
Ask us about the following customizations:
- higher and lower output power
- operating voltage
- customized dimensions and interfaces
-
PBZ-300 capacitor charging power supply
Applications
- Capacitor charging for industrial pulsed energy systems
Features
- Input voltage 24 V DC
- 400 W output power for partial discharge
- 300 J/s output power for complete discharge
- Up to 4000 V output voltage
- Up to 85% efficiency
-
PBZ-500 capacitor charging power supply
Applications
- Capacitor charging for industrial pulsed energy systems
Features
- Input voltage 48 V DC
- 700 W output power for partial discharge
- 500 J/s output power for complete discharge
- Up to 4000 V output voltage
- Up to 85% efficiency
-

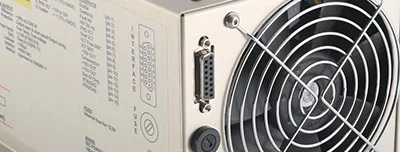

PCA-10 capacitor charging power supply
Applications
- Capacitor charging for medical and industrial pulsed energy systems
Features
- 1000 W nominal output power
- Up to 1500 V output voltage
- 110-240 V AC universal input
- Meets all safety and EMC requirements for medical devices
- 3-year guarantee (option)
-
PCA-20 / PCA-25 capacitor charging power supplies
Applications
- Capacitor charging for medical and industrial pulsed energy systems
Features
PCA-20 PCA-25 • Input voltage, VAC 110-240 V 200-240 V • Output power 2 kW 2.5 kW - Up to 1500 V output voltage
- Meets all safety and EMC requirements for medical devices
- 3-year guarantee (option)
-
PCP-17: Efficient Capacitor Charger for Industrial Applications
Applications
- Capacitor charging power supply for industrial pulsed energy systems
Features
- 1.75 kW average output power
- Up to 4000 V output voltage
- Up to 85% efficiency
- Parallel operation
- Reasonable price
- 2-year guarantee (option)
