Wedges

Product : Wedges

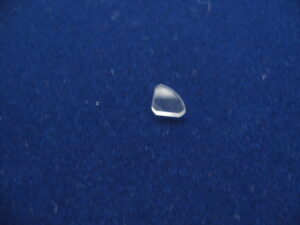

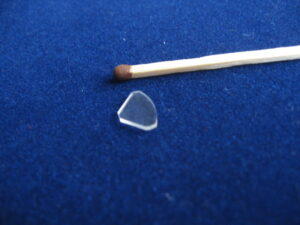

ARD-Optics manufactures wedges from sapphire, quartz glass and other optical materials. In addition to usual standard wedges we produce wedges of complicated configuration, for example segments, trapezoidal and other types at the request of the customer. The sizes of these elements range from several millimeters and end up to 80mm.
Meterial Sapphire Quartz glass & other optical
materials
Flatness
Up to λ/8
Up to λ/8
Thickness tolerance
+/-0.1 mm
+/-0.1 mm
Precision of wedge
Up to 2 arc min.
Up to 2 arc min.
Surface quality S/D MIL-13830
20/10
10/05
Chamfer
0.1 mm
0.1 mm
