Home Diode driving Thermocontrollers TEC-BT thermocontroller

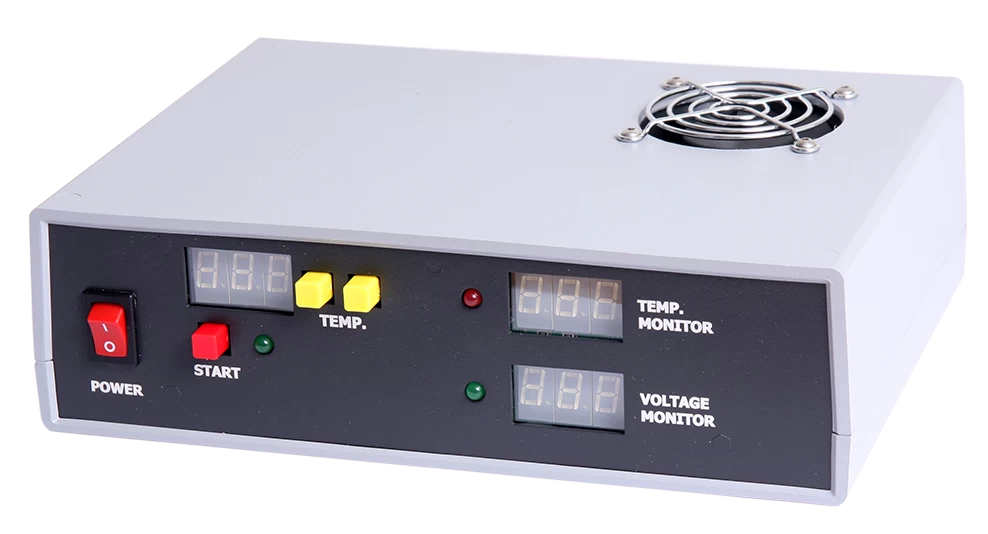

TEC-BT thermocontroller

Assembled in standard bench-top plastic case TEC-BT temperature controller demonstates high output power along with high temperature control precision:

  • Maximal output current up to 10 A
  • Maximal output voltage up to 20 V
  • 0.1 C precision
  • Improved parameters on request
  • RS-232 interface

Technical Specifications

Input:

Voltage
110-230 V AC, 50/60 Hz
Current
2.0 A max

Output:

Voltage
–20 … +20 V
Current
up to 10 A
Power
up to 150 W
Feedback loop
10 kOhm NTC termistor
Output temperature range
+10 … +40 ºC (other on request)
Temperature accuracy
0.1 ºC
Cooling
forced air cooling with the embedded fan

Other:

Size (LxWxH)
225x200x60 mm
Weight
1.5 kg

Downloads

tec-bt-manual-en
tec-bt-manual-en.pdf (220 KB)
