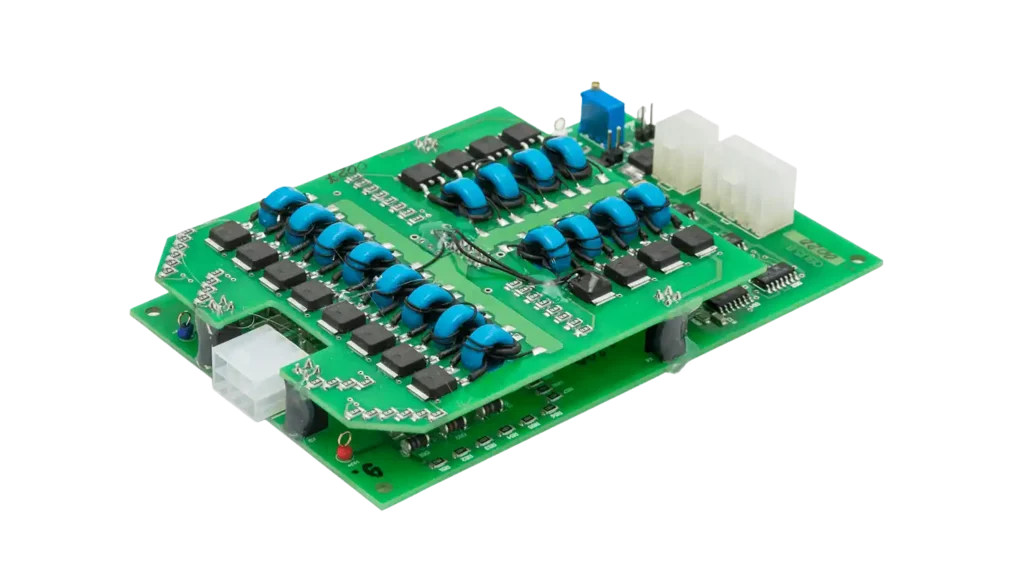

QBU/QBY-series Pockels Cell Drivers
Product details
QBU-series Pockels cell drivers have higher performance and wider functionality than QBD-series drivers and may be used for advanced beam control. Main parameters/features are as follows:
- Extremely flexible topology
- Duplicates at its High-Voltage Output the external driving TTL signal
- HV push-up and pull-down configurations
- Up to 6 kV output voltage
- Up to 100 kHz Pulse Repetition Rate
- <15 nsec (~10 nsec typ.) rise- and fall times
- Compact OEM design
Downloads: Downloads
| File | Size | Updated |
|---|---|---|
|
qbu-manual-en.pdf
Download manual (1 MB)
Download manual
|
1 MB | March 10, 2026 |
|
qbu-step.zip
Download STEP model (10 MB)
Download STEP model
|
10 MB | March 10, 2026 |
Product Description
QBU-series Pockels cell drivers
QBU-series consist of several Pockels cell drivers differ with their output voltage range (see also How to order? section) and covering range up to 6.0 kV.
Modules have fast transition times in both directions and repeat at their output external driving TTL signal. As a result, they may be used for Q-switched lasers of HV push-up scheme, pull-down scheme as well for mixed-type, or another user-defined scheme.

Under conditions of appropriate forced air cooling, low load capacitance and low operating voltage modules may achieve performance up to 100 kHz.
Performance
For instance, QBU-5020 run with proper load (Pockels cell with 5-7 pF capacitance plus <20 cm long HV leads), and under condition of appropriate cooling has typical performance as shown in the table below:
| Output voltage, kV | Repetition rate, kHz (*) |
|---|---|
| 2.00 | 90-110 |
| 3.00 | 50-60 |
| 4.00 | 28-38 |
| 5.00 | 18-26 |
- (*) Values are approximate, exact performance depends on actual load capacitance and cooling conditions.
- In burst mode (i.e. for short term operations) the performance increases by approximately a factor of 2, and exceeds 100 kHz at low operating voltages and low load capacitances.
- Higher load capacitance decreases the performance.
Applications
- Q-switching, Pulse Slicing, Pulse Picking
Technical Specifications
| INPUT | |
|---|---|
| Voltage | +24 VDC |
| OUTPUT | |
| Working modes | repetition of external low voltage signal |
| Voltage, high level | regulated, up to 6 kV1 |
| Voltage, low level | fixed, 0 V |
| Pulse width | 200 nsec – DC |
| Repetition rate | up to 50 kHz (CW), up to 100 kHz (burst-mode)1, 2 |
| Rise time (fall time) | < 15 nsec (~10 nsec typ.)3 |
| Jitter | 10 nsec (1 nsec in LJ-modification) |
| Delay time | 1 µsec (100 nsec in LJ-modification) |
| Load capacitance | up to 0.5 nF1 |
| ENVIRONMENT | |
| Operational Temperature | +10 °C to +40 °C (wider range on request) |
| Storage Temperature | ‐20 °C to +60 °C |
| Humidity | 90%, non-condensing |
| PHYSICAL | |
| Exterior Dimensions (LxWxH) | 130x80x25 mm |
| Weight | 0.1 kG |
1 these parameters aren’t independent, and cannot achieve their maximum at the same time;
2 forced air cooling is required when operating at high repetition rates;
3 10-90% level, warranted at load capacitance 11 pF and below.
How To Order
Voltage Modifications
| Model* | Description* |
|---|---|
| QBU-6024 | 2.4-6.0 kV high voltage adjustment range |
| QBU-5020 | 2.0-5.0 kV high voltage adjustment range |
| QBU-4016 | 1.6-4.0 kV high voltage adjustment range |
| QBU-3012 | 1.2-3.0 kV high voltage adjustment range |
| QBU-2008 | 0.8-2.0 kV high voltage adjustment range |
| QBU-1004 | 0.4-1.0 kV high voltage adjustment range |
| (*) Other output voltages are available on request | |
| Other Options: | |
| LJ- | Low-Jitter Option |
| Example: | |
| QBU-5020-LJ | 2.0-5.0 kV high voltage adjustment range Low jitter option |
