Precisely synchronizes up to two Pockels cell drivers to the seed oscillator optical pulse train. Key parameters/features are as follows:

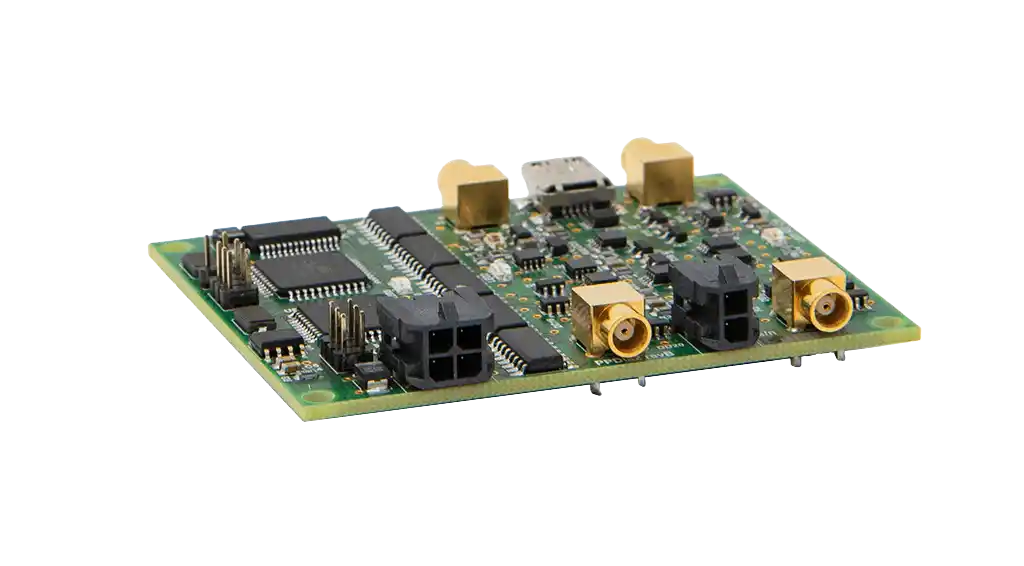

PP-CONTROL has an input (optical and electrical) and two outputs. Board’s main purpose is to produce output pulses precisely aligned relatively to the input pulses.
Input pulses are typically of 10MHz – 100MHz repetition rate. Output repetition rate is from single pulses to 1MHz.
The board was designed for pulse picking applications and regenerative amplifier control. The primary intented use is in the laboratory.
Read more about regenerative amplification
You may also like PP-kit
| INPUTS | |
|---|---|
| Power | 5V (via USB), 1A max |
| SEED IN (optical) | High speed PIN photodiode (SFH 2701 by Osram by default, other photodiodes e.g. for 1.5µm or 2µm lasers are available on request) |
| SEED IN (electrical) | 1V recommended, 0.5-3.0V acceptable 20-100MHz by default, other on request |
| OUTPUTS | |
| Synchro output #1 (Pulse Picker) | 5V TTL, 1-1000kHz |
| Synchro output #2 (Regenerative Amplifier) |
5V TTL, 1-1000kHz, approx. 100nsec to approx. 1100nsec (with 100MHz input train), other on request |
| Delays | D1, D2, D3 – approx. 0-100nsec; DL – approx. 0-1000nsec |
| Jitter | D1, D2, D3 < +/-250psec |
| INTERFACES | |
| USB | + |
| PHYSICAL | |
| Exterior Dimensions (LxW) | 67.3 x 55.9mm |
| Weight | <0.2 kG |
PP-CONTROL Pulse picker and regenerative amplifier synchronization board - User manual
pp-control-manual-en.pdf (2 MB)
