Passive Glasses Laser Cavity Materials

In stock

S7000 is a clear, cerium-doped silicate glass used as a laser cavity material. It is also available to serve as a UV cut-off material. S7005 is a laser cavity material with 5 % doping of samarium oxide.

In stock

Reply within 1 business day

FAQ | Return Policy | Warranty Policy | Shipping info | Pricing

Optical Properties

Nd	1.563
vd	55.7
n105 nm	1.561
n1054 nm	1.552
UV Cut-off at 10% Transmission, Thickness of 5 mm [nm]	300

Physical Properties

Density, ρ [g/cm3]	2.83
Thermal Conductivity (25°C), k [W/m.k]	0.80
Thermal Conductivity (90°C), k [W/m.k]	0.96
YOung’s Modulus, E [GPa]	78
Poisson’s Ratio, V	0.247
Themal Expansion, a 20-300°C [10-7/°C]	111
Transformation Temperature, Tg [°C]	452
Softening Point (107.6 poise)[°C]	598

Passive Glasses Laser Cavity Materials

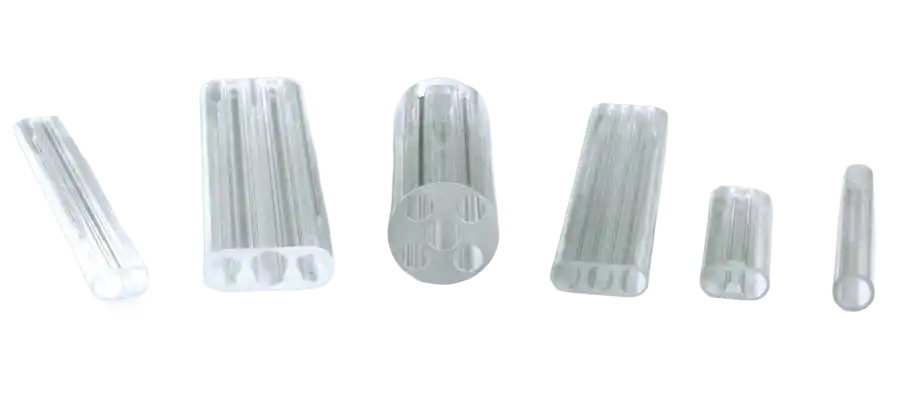

Passive Glasses Laser Cavity Materials S7010N, S7005 and S7000
S7000 is a clear, cerium-doped silicate glass used as a laser savity material. it is also available to serve as a UV cut-off material. S7005 is a laser cabity material with 5% doping of samarium oxide. This material usually thicker than 6mm. S7010N is a laser cavity material with 10% doping of samrium oxide. This glass is recommended for most application. Schott offers a complete line of commercial filter glass and produce woth a full range of doping levels for specific applications.

Passive Glasses
Laser Cavity Materials
S7010N, S7005 and S7000

S7000 is a clear, cerium-doped silicate glass used as a laser savity material. it is also available to serve as a UV cut-off material.
S7005 is a laser cabity material with 5% doping of samarium oxide. This material usually thicker than 6mm.
S7010N is a laser cavity material with 10% doping of samrium oxide. This glass is recommended for most application. Schott offers a complete line of commercial filter glass and produce woth a full range of doping levels for specific applications.

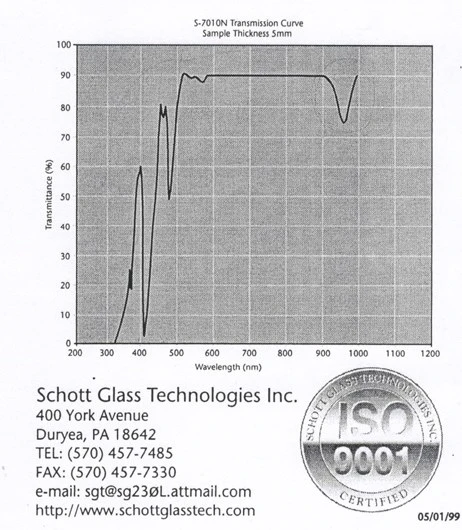

Property Sheet for S7010N

Optical Properties
n_d	1.560
v_d	55.0
n_1054nm	1.558
n_1540m	1.549
UV Cut-off at 10% Transmission, Thickness of 5mm [nm]	364.1±2.1
Absorption Coefficient at 1060nm [cm^-1]	3.1±0.1
Optical Density at 1064nm [cm^-1]	1.4±0.1

Physical Properties
Density, p [g/cm³]	2.88
Thermal Conductivity (25°C), k [W/m.k]	0.78
Thermal Conductivity (90°C), k [W/m.k]	0.93
Young’s Modulus, E [GPa]	78
Poisson’s Tatio, v	0.246
Thermal Expansion, α_20-300°C [10^-7/°C]	115
Trasformation Temperture, T_g [°C]	452
Softening Point (10^{7-6 poise}) [°C]	594

Chemical Properties
Weight Loss in 50°C water [mg/(cm².day)]	0.180
Acid Resistance SR pH=0.3 at 25°C	1.2
Alkali Resistance AR pH=12 at 50°C	1.0
Staining Resistance FR pH=4.6 100h at 25°C	1
Climatic Resistance CR water Vapor at 40-50°C for 30 h	1-2
Samarium Content [wt% Sm₂O₂]	10

Passive Glasses Laser Cavity Materials

Passive Glasses Laser Cavity Materials S7010N, S7005 and S7000
S7000 is a clear, cerium-doped silicate glass used as a laser savity material. it is also available to serve as a UV cut-off material. S7005 is a laser cabity material with 5% doping of samarium oxide. This material usually thicker than 6mm. S7010N is a laser cavity material with 10% doping of samrium oxide. This glass is recommended for most application. Schott offers a complete line of commercial filter glass and produce woth a full range of doping levels for specific applications.

Passive Glasses
Laser Cavity Materials
S7010N, S7005 and S7000

Property Sheet for S7005

Optical Properties
n_d	1.562
v_d	55.0
n_1054nm	1.560
n_1540m	1.551
UV Cut-off at 10% Transmission, Thickness of 5mm [nm]	360.1±5
Absorption Coefficient at 1060nm [cm^-1]	1.2±0.1
Optical Density at 1064nm [cm^-1]	0.56±0.1 0

Physical Properties
Density, p [g/cm³]	2.88
Thermal Conductivity (25°C), k [W/m.k]	0.77
Thermal Conductivity (90°C), k [W/m.k]	0.92
Young’s Modulus, E [GPa]	78
Poisson’s Tatio, v	0.247
Thermal Expansion, α_20-300°C [10^-7/°C]	115
Trasformation Temperture, T_g [°C]	452
Softening Point (10^{7-6 poise}) [°C]	594

Chemical Properties
Weight Loss in 50°C water [mg/(cm².day)]	0.180
Acid Resistance SR pH=0.3 at 25°C	1.2
Alkali Resistance AR pH=12 at 50°C	1.0
Staining Resistance FR pH=4.6 100h at 25°C	1
Climatic Resistance CR water Vapor at 40-50°C for 30 h	1-2
Samarium Content [wt% Sm₂O₂]	5

Passive Glasses Laser Cavity Materials

KIGRE INC. is an analog firm producing Passive Glasses Laser, information about Kigre INC provided below

KIGRE,INC.

CavityFilters

For Solid-State Lasers

KIGRE INC.’s expertise in laser glass technology has led the way in the company’s development of a wide range of cavity filter glass for solid-state lasers. Filters are used inside the laser cavity to enhance beam amplification by matching the frequency of the wavelengths corresponding to the appropriate pump bands. They also absorb unwanted UV and IR radiation.
KIGRE’S filters are strengthened after fabrication using a proprietry method which tempers the filter with approximately five times the strength of normal glass. This added strength extends the operational life and makes possible more precise boring and machining.
KIGRE manufactures filters in a wide variety of sizes and configurations, ranging from simple flow tubes and slides to complete cavity assemblies with barium sulphate overcoating. In addition, KIGRE also develops custom filters for a wide range of applications.

Passive Glasses Laser Cavity Materials

Filters for improved laser Efficiency

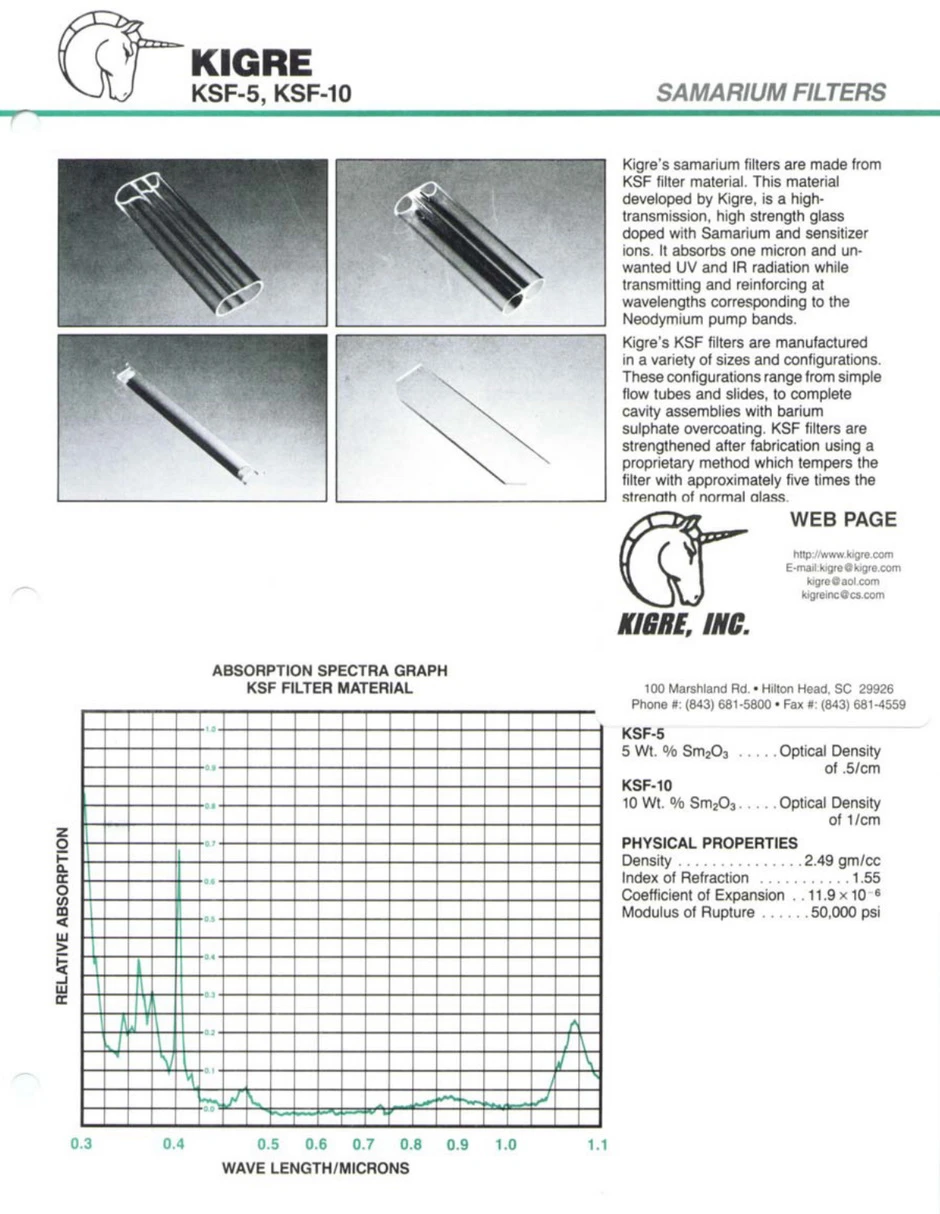

KSF – 5/KSF – 10 Samarium Filters

KIGRE’S Samarium filters are made from KSF filter material. Developed by KIGRE, this material is a high transmission, high strength glass doped with samrium and sensitizer ions. KSF-5 has 5% samari um doping; KSF-10 has 10% samrium doping. KSF absorbs one micron and unwanted UV and IR radiation while transmitting and reingorcing at wavelengths corresponding to the neodymium pump bands. KIGRE’s KSF filter are manufactured in a variety of sizes and configurations.s These configurations range from simple flow tubes and slides to complete cavity assemblies with barium sulphate overcoating. An added benefit-KSF filters are strengthened after fabrication using a proprietary method wich tempers the filter with approximately five times the strength of mormal glass.

Passive Glasses Laser Cavity Materials

KF-2

KF-2 filter material is ideal for improving the efficiency of glass laser systems. KF-2 is available in a number of size and configurations. CUT-OFF POINT (2% Transmission 2mm sample)…. 300 Nanmeters

Passive Glasses Laser Cavity Materials

KC-331

KC-331 was developed especially for use with easily solarized UV-sensitive materials such as Alexandrite. As an added feature, KC-331 contains properties which make it radiation resistant. CUT-OFF POINT (2% Transmission 2mm sample)…. 347 Nanmeters

Passive Glasses Laser Cavity Materials

LASER CAVITY FILTER MATERIALS FILTERS FOR IMPROVED LASER EFFICIENCY

Fliter Glass Properties	KSF-10	KSF-5	KF-2	KC-331
UV Cutoff (2mm) (2% transmission)	375nm	325nm	300nm	347nm
IR Cutoff	2500nm	2500nm	2500nm	2500nm
optical Density (1.06 microns)	1.0/cm	0.5/cm	NA	NA
Index of Refraction (D line of Sodium)	1.575	1.563	1.554	1.553
Thermal expansion (×10 exp-7/day .C) 25-300 Deg. C.	113	118	114	110
Thermal expansion (×10 exp-7/day .C) 0-100 Deg. C.	99	79	85	84
Softening Temperature, Deg C.	501	487	488	502
Glass Trensition Temperature, Deg C.	479	454	474	491
Density (g/cc)	2.66	2.56	2.55	2.56
Modulus of Rupture, psi (after strengthning)	50K	50K	50K	50K
Fluorescence outpur Color (visible)	Orange	Pink	NA	Blue
Acid resistivity (HNOe 0.5M) Class FI	Pass	Pass	Pass	Pass
Thermal conductivity (W/m-k)	1.3	1.3	1.3	1.3
Knoop Hardness Kg./sq.mm (Hk for 100g load)	600	600	600	600
Poisson’s Ratio	0.24	0.24	0.24	0.24

Customized glasses are also available through Kigre’s “Specialty Glass Group”. For more information ask you Kigre Sales Representative about Kigre’s “Special” Melts.

Radiation Hardened
filter Material KK-1

Kigre manufactures another proprietaty Samar. ium doped, radiation hardened filter material designated KK-1 The adjacent Transmission curvex demonstrate KK-1’s radiation resistance,

These curces were generated from a KK-1 sample exposed to 46.070 rads/minute of co-60 gamma radiation for 22 minutes. the Total dose rate was I megrad Si. Courtesy Sandia National Laboratories.

Passive Glasses Laser Cavity Materials

Products in this series:

K8 Glass is Russian substitute for Schott Glass BK7

Sapphire
