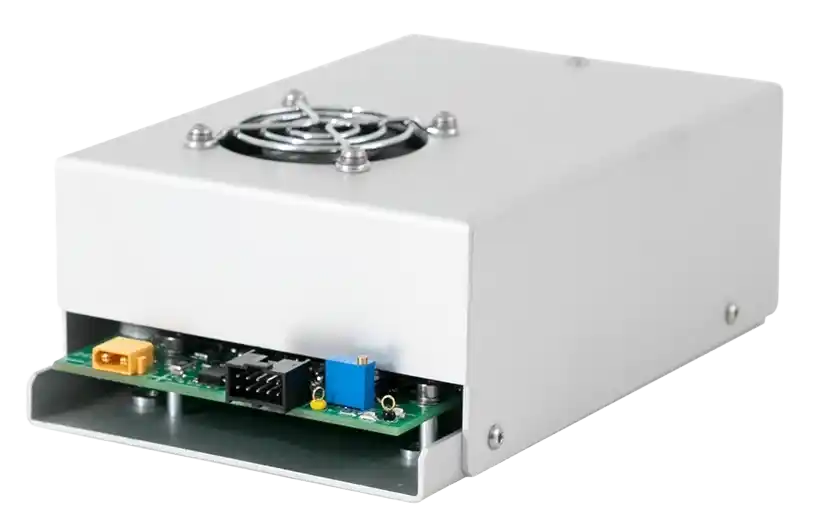

HVPS-300 High-Voltage Power Supply

HVPS-300 is a specialized high voltage power supply with DC input and bipolar output. Other parameters/features are as follows:

  • Bipolar Output;
  • 24VDC Input;
  • Output Voltage – up to 4kV (+/-2kV);
  • High output power – up to 300W;
  • Voltage setting accuracy and stability – better than 0.5%;
  • Water cooling;

Applications

  • Megahertz-class Pockels Cell Drivers

Description

HVPS-300 is a specialized HV power supply with bipolar output. This means the output connector has three pins – Ground, HV positive and HV negative. Potentials of HV positive and HV negative are always equidistant from the Ground potential. In other words, 4kV output voltage is produced by generation of +2kV at HV positive pin and -2kV at HV negative pin.

Due to bipolar output and high stability of HV output, the target application of HVPS-300 is feeding high voltage high repetition rate Pockels cell drivers commonly used in laser industry.

Module’s input is 24VDC. Module’s output is DC high voltage (modification up to 4kV are available by default, higher voltages are discussable). Maximal output power exceeds 300W. Power supply is forced-air cooled with an embedded fan.

By default, all interfaces are analogue. Digital interfaces are available on request.

Technical Specifications

INPUT

Voltage

+24V DC; up to 20A at full output power

HV OUTPUT

Output Voltage

A few modifications with output voltage up to 4 kV DC1 are available

Output type

Bipolar, +U/2 applied to one output wire and -U/2 – to another

Output Power

>300W (in 70-100% of VMAX region)

Output capacitance

Modification dependent

Voltage accuracy (incl. thermal drift)

<0.5% (typically)

Ripple

<0.2% peak-to-peak

Efficiency

>90%

ENVIRONMENT

Protections

From overheating

Operational Temperature

+10…+40°C

Storage temperature

-20…+60°C

Humidity

90%, non-condensing

PHYSICAL

Exterior Dimensions (LxWxH)

180x107x57mm (w/o inputs and outputs)

Weight

<1.0 kG

1 In terms of bipolar output (see also Technical notes section);

How to Order

Modification Description

HVPS-300-2kV

Max Uout – 2kV
Max Pout – >300W @2kV and decreases steadily with output voltage; Output capacitance – 13.5µF

HVPS-300-4kV

Max Uout – 4kV
Max Pout – >300W @4kV and decreases steadily with output voltage; Output capacitance – 3.3µF

Downloads

HVPS-300 high voltage power supply - User manual
hvps-300-manual-en.pdf (3 MB)
