MHz-class fast driver for pulse pickers, full bridge Pockels cell drivers for choosing single pulse from train of ultrashort pulses.
PP-KIT pulse picker developer kit, a set of devices easy-to-integrate into your system,
HVSW-03 or HVSW-04 Pockel cell drivers of MHz repetition rates.
Please, take into account also
- ultra fast (1-3 ns rise), ultra small (40×30 mm) kHz-range QBD-nano for cavity dumping
- ultra fast (1-3 ns rise and fall), small (80×50 mm), kHz-range, 0-800 ns duration QBU-nano for regenerative amplifier control
- ultra fast (3-4 ns rise and fall), small (80×50 mm), up to 10 kHz-range, 10-1000 ns duration QBY-4001 and QBY-4010 on GaN transistors, for regenerative amplifier control and pulse picking.
- ultra fast (3-4 ns rise and fall), up to 5 kHz-range, 10-1000 ns duration encased driver for laboratory QBY-BT on GaN transistors, for regenerative amplifier control and pulse picking.
-

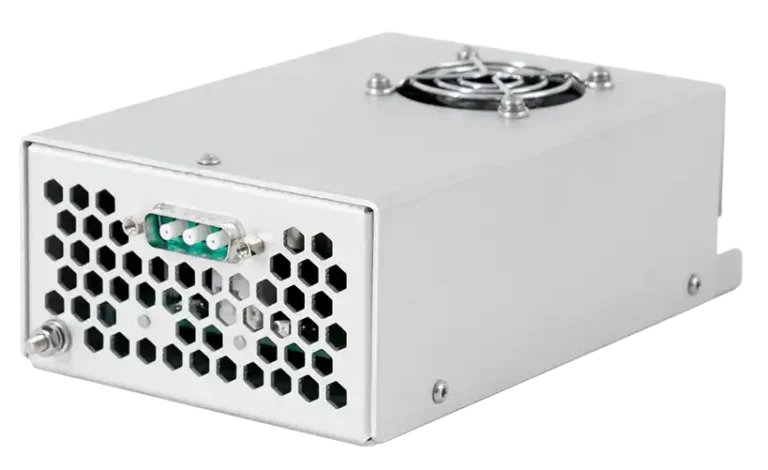

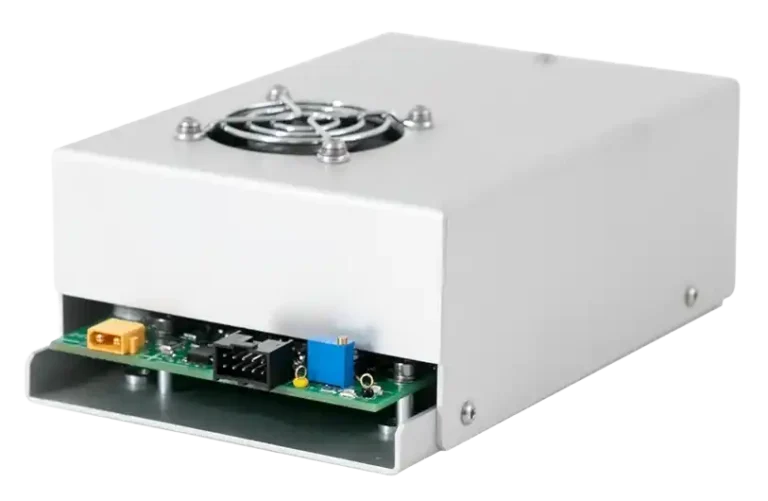

HVPS-300 High-Voltage Power Supply
HVPS-300 is a specialized high voltage power supply with DC input and bipolar output. Other parameters/features are as follows:
- Bipolar Output;
- 24VDC Input;
- Output Voltage – up to 4kV (+/-2kV);
- High output power – up to 300W;
- Voltage setting accuracy and stability – better than 0.5%;
- Water cooling;
-
HVSW-03 Pockels Cell Driver
Applications
- Pulse picking
- Cavity dumping
- Regenerative amplifier control
Features
- Up to 2.0 kV output voltage
- Up to 1 MHz repetition rate (at 1.6 kV voltage)
- 5-8 ns rise time and fall time
- Two possible operating modes: short pulse (10-15 ns, fixed width) and long pulse (100-2000 ns, adjustable width)
- Integrated high voltage power supply
- Compact (as small as 170x60x32 mm)
-

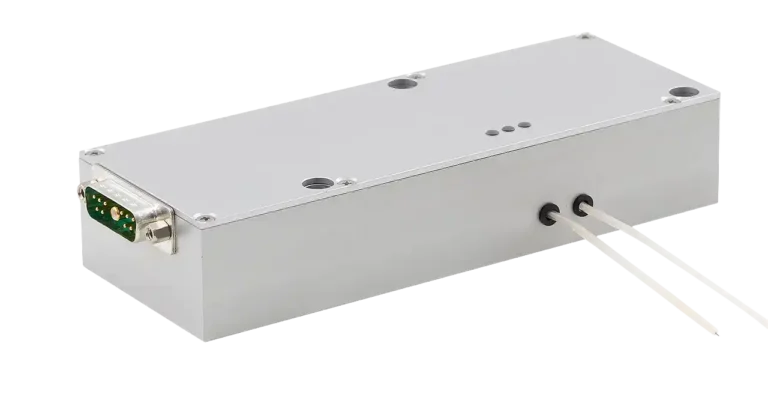

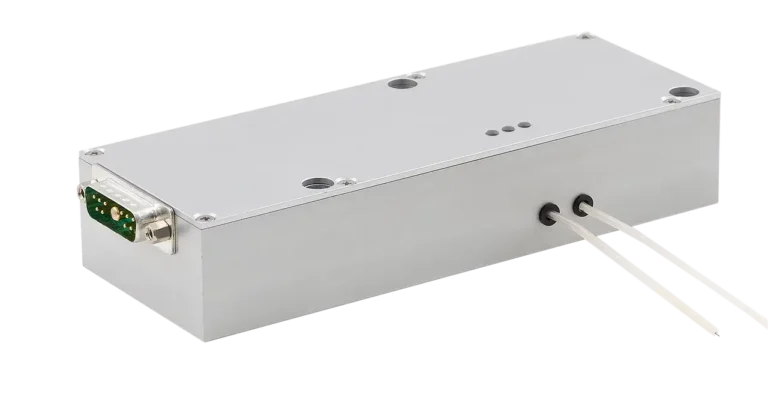

HVSW-03 Pockels cell driver
Applications
- Pulse picking
- Cavity dumping
- Regenerative amplifier control
Features
- Up to 2.0 kV output voltage
- Up to 1 MHz repetition rate (at 1.6 kV voltage)
- 5-8 ns rise time and fall time
- Two possible operating modes: short pulse (10-15 ns, fixed width) and long pulse (100-2000 ns, adjustable width)
- Integrated high voltage power supply
- Compact (as small as 170x60x32 mm)
-

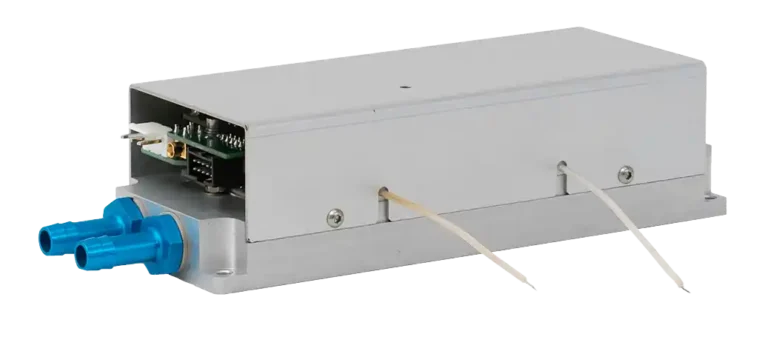

HVSW-04 Pockels Cell Driver
Applications
- Pulse picking
- Cavity dumping
- Regenerative amplifier control
Features
- Up to 4.0 kV output voltage
- Up to 4 MHz repetition rate (at 1.4 kV voltage)
- Up to 1 MHz repetition rate (at 3.2 kV voltage)
- 5-11 ns rise / fall time
- Requires external HV power supply
- Two possible operating modes for base model: short pulse (15-20 ns, fixed width) and long pulse (100-2000 ns, adjustable width)
15-2000 ns pulses for wide range modification
-

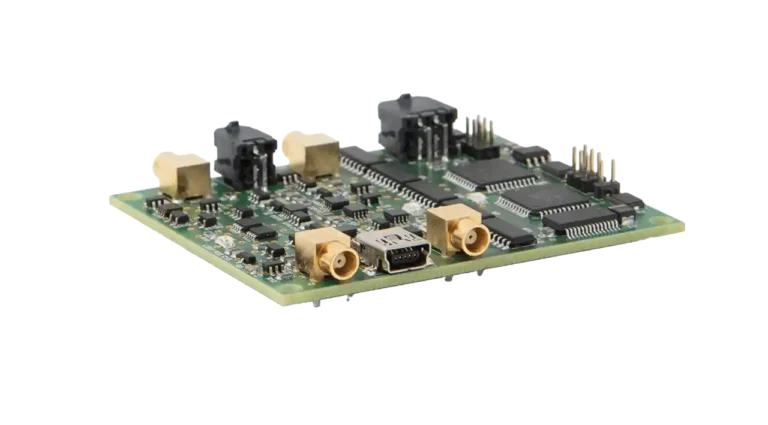

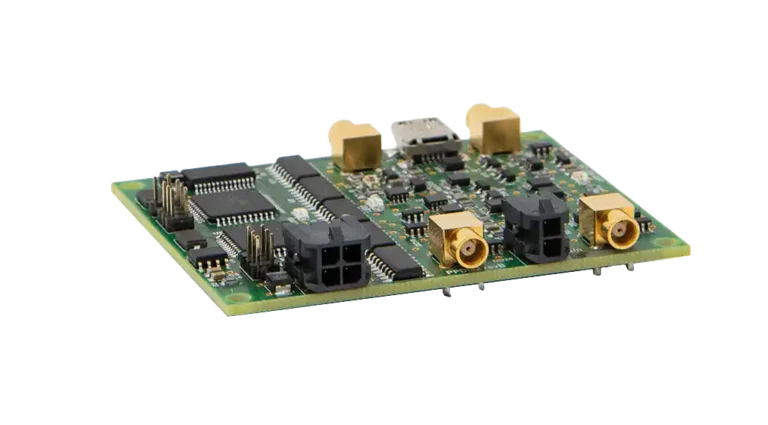

PP-CONTROL Synchronization Board
Precisely synchronizes up to two Pockels cell drivers to the seed oscillator optical pulse train. Key parameters/features are as follows:
- 1 x Optical synchro input
- 1 x Electrical synchro input
- 2 x Independent synchro outputs
- over 1000 nsec adjustable delay in each channel
- +/- 250 psec jitter
- USB, RS-485 interfaces
-

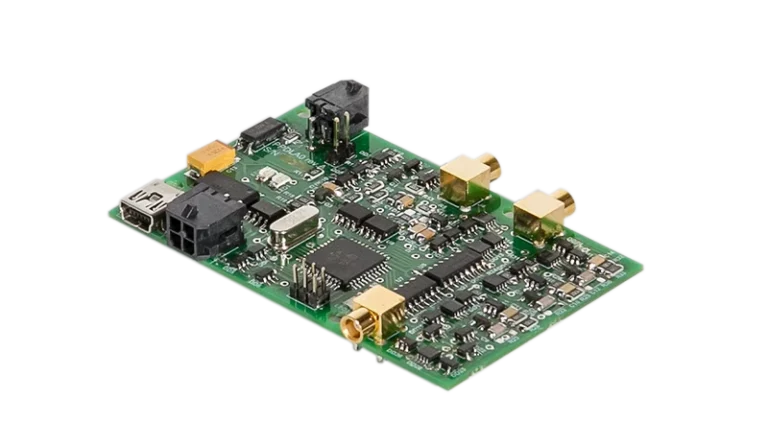

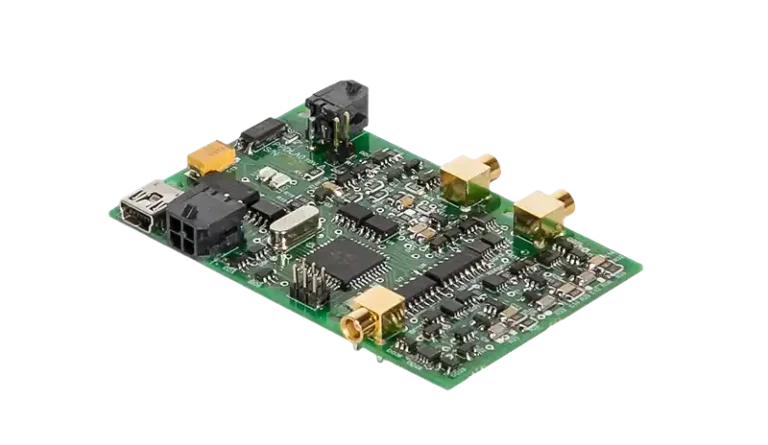

PP-KIT Developer Kit
PP-KIT or Pulse-Picker Developer Kit includes:
- One PP-CONTROL synchronization board;
- One or two HVSW-03 or HVSW-04 high repetition rate Pockels cell drivers;

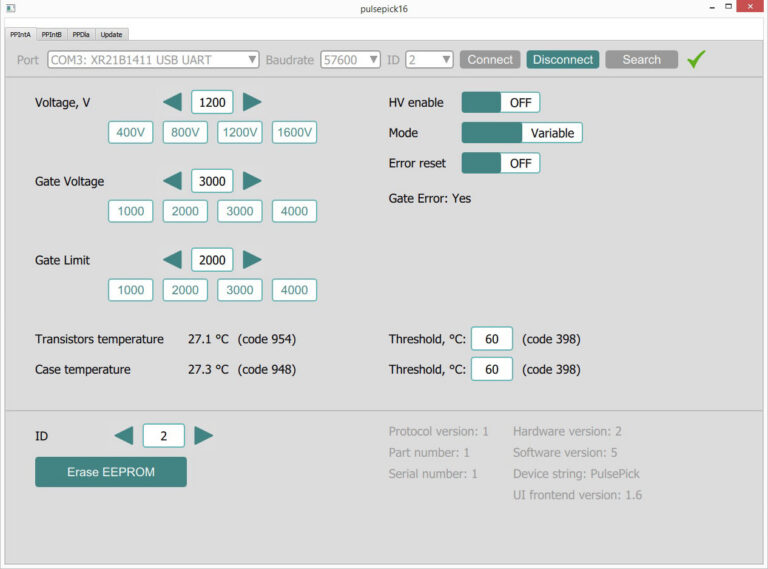

- PC software;
- Auxiliary power supplies, interconnective cables, etc.
-
PP-KIT electronics for pulse picker, developer kit
pplications
- Pulse picking, electronics for pulse picker
- Regenerative amplifier control
Contents
- One synchronization board
- One or two or high voltage high repetition rate Pockel cell drivers
- PC software
- Auxiliary power supplies, interconnection cables etc.
-

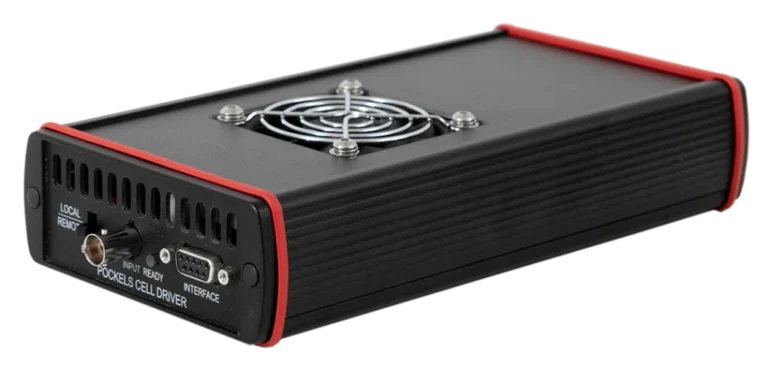

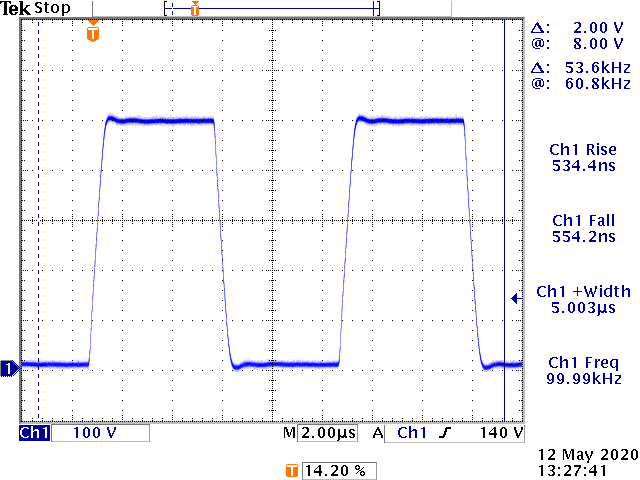

QBX-08 – Arbitrary waveform Pockels cell driver
Applications
- Electro-optics (light modulation, beam deflection, beam steering)
- Piezo actuators, MEMS actuators
- Ultrasonic devices
- As single channel signal amplifier
Features
- Arbitrary waveform – input signal amplifier
- High voltage – up to 800 V (1600 V on request)
- High frequency (bandwidth) – over 50 kHz at full voltage and 60 pF, up to 1 MHz at smaller voltages and loads
- Fast transitions – <1 μs (full slope), slew rate ~1 kV/μs
