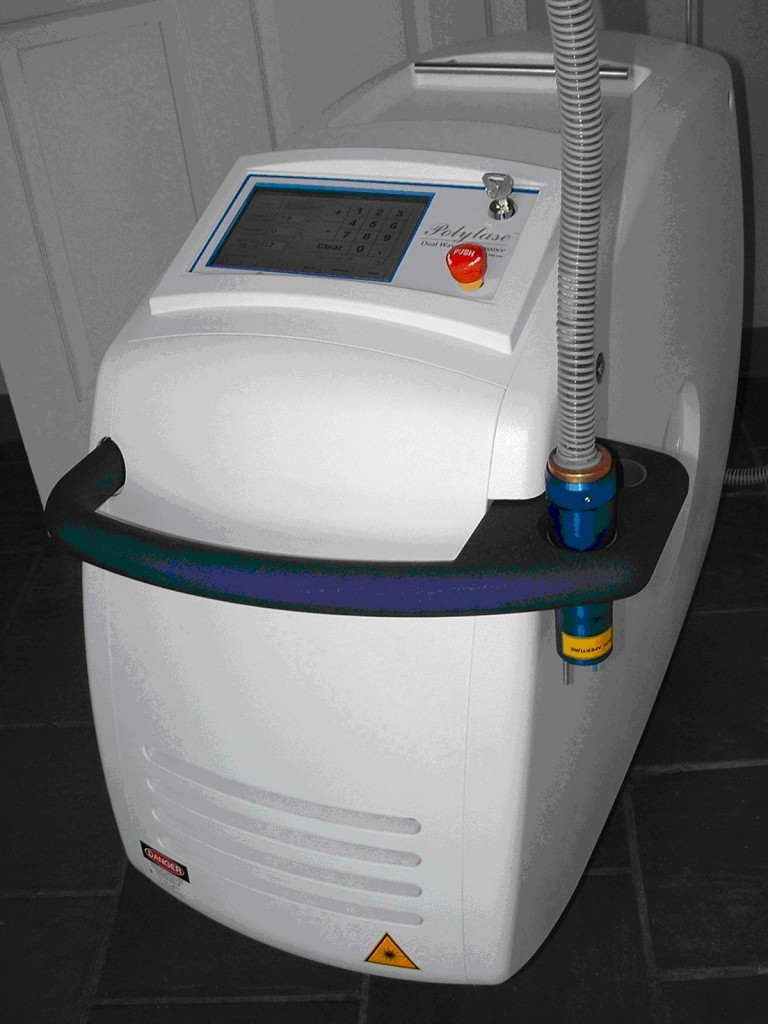

DDC Polylase LP®

Vigitek, Inc. represents DDC Technologies and its main product Polylase LP.

Two state-of-the-art lasers in one complete package!

Download Brochure

Overview



This dual laser does it all! The 755nm Alexandrite mode provides less pain and high efficacy for hair removal on light skin. This wavelength is also indicated for removal of age/sun spots (lentigines), purple veins, port wine stains and birth marks. The 1064 nm Nd:YAG mode provides the advantages of safe hair removal on dark/tanned skin. The deeper penetration of the 1064 nm wavelength provides maximum efficacy for hair removal in deep follicles (e.g. man’s beard,  woman’s bikini line, etc.). The wide range of pulse width (0.5 ms to 100 ms) and high repetition rate (up to 5 Hz in Alex mode and 10 Hz in Nd:YAG mode) allows this machine to be one of the most effective for non-ablative wrinkle reduction (collagen rebuild) treatments.

  • Fast, Reliable, Powerful
  • Compact Footprint -Easy to transport
  • On demand use – No warm-up required
  • Say goodbye to Costly Consumables
  • Available in any configuration

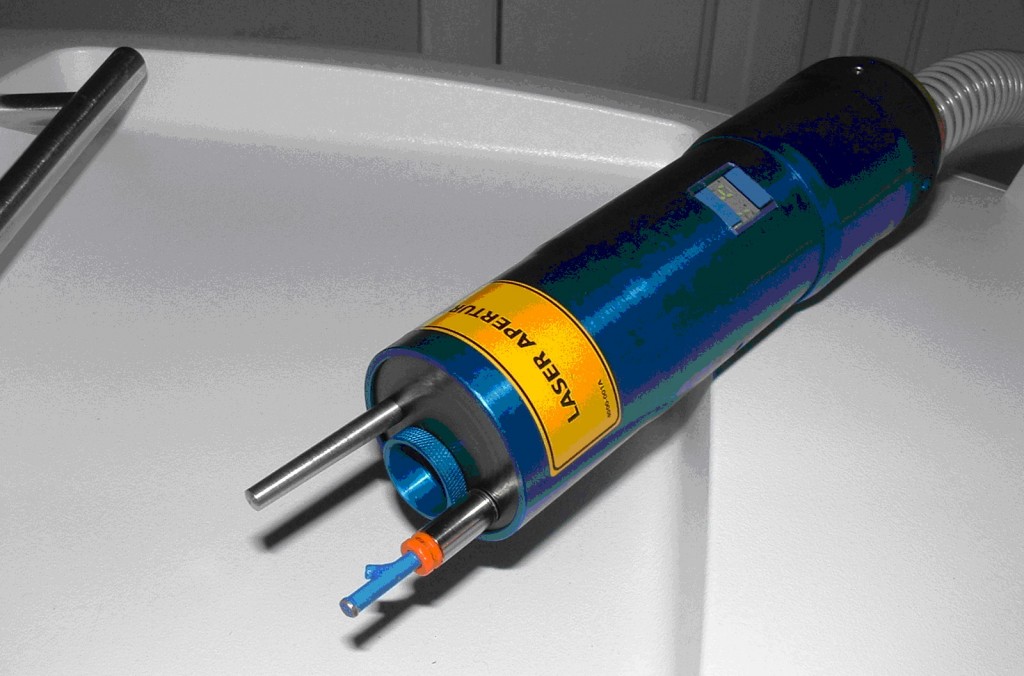

  • Motorized Handpiece with Rapid Spot Size changes
  • Built-in cold-air Skin Cooling
  • Versatile with Multiple FDA Cleared Applications
  • Low Maintenance and Low Cost of Ownership

















Specifications



Item

Description

Description

Laser Type

 Long Pulse Alexandrite Laser Long Pulse Nd:YAG Laser

Laser Wavelength

 755 nm 1064 nm

Max. Energy Per Pulse, J

 60 J 60 J

Laser Pulse Width

 1-100 ms (user selectable) 1-100 ms (user selectable)

Max. Average Power

 80 W 90 W

Max. Peak Power

 8 kW 8 kW

Pulse Repetition Rate

 Single Shot – 5 Hz Single Shot – 10 Hz

Beam Delivery

 Optical fiber, 10 feet (3 m) length Optical fiber, 10 feet (3 m) length

Optical Fiber core diameter

 1000 mm 1000 mm

Handpiece Spot Size

 10mm, 12mm or 16 mm dia. 10 mm, 12 mm or 16 mm dia.

Max. Energy Fluence

 30 J/cm2 @ 16mm spot size 30 J/cm2 @ 16 mm spot size

Handpiece Cooling

 Compressed chilled air jet (standard) Compressed chilled air jet (standard)

Dimensions (HxWxL)

 31″x 13″x 27″ (790x330x690 mm)

Weight

 60 kg (130 lbs.)

Power Requirements

 208…230V single phase ~50/60Hz, 20A

Noise Level

 <70 dB
